To help you get started, we've collected the most common ways that waveform-playlist is being used within popular public projects.

ritazh / EchoML / app / annotations.js View on Github

export function loadAnnotation(notes) {
  const playlist = WaveformPlaylist.init({
    container: document.getElementById('playlist'),
    timescale: true,
    state: 'select',
    samplesPerPixel: 3400,
    zoomLevels: [1000, 2000, 3400, 4000],
    colors: {
      waveOutlineColor: '#E0EFF1',
      timeColor: 'grey',
      fadeColor: 'black',
    },
    annotationList: {
      annotations: notes,
      controls: actions,
      editable: true,
      isContinuousPlay: false,
      linkEndpoints: true,

View more ways to use waveform-playlist

Sponsors

Become a sponsor

Waveform Playlist

Inspired by Audacity, this project is a multiple track playlist editor written in ES2015 using the Web Audio API.

Load tracks and set cues (track cue in, cue out), fades (track fade in, fade out) and track start/end times within the playlist. I've written up some demos on github for the different audio fade types in the project.

• See examples in action
• Try out the waveform editor!

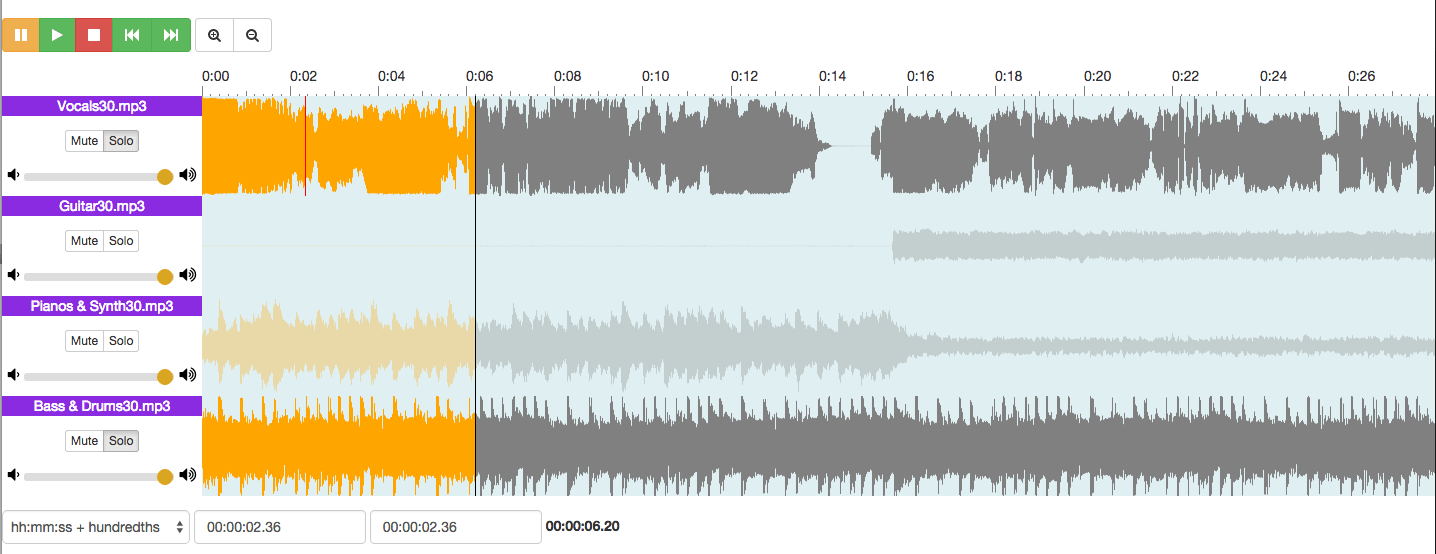

(code for picture shown can be found in ghpages/_examples/04stemtracks.html)

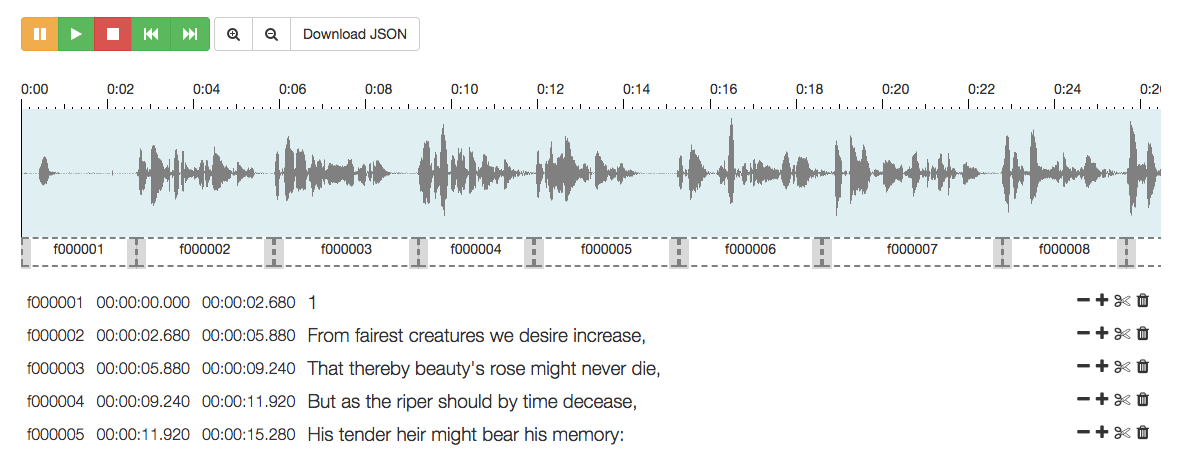

(code for picture shown can be found in ghpages/_examples/13annotations.html)

Browser Support

Waveform Playlist requires webaudio in the browser to function correctly: Can I Use?

Installation

npm install waveform-playlist --save

Hate npm? Check Unpkg: https://unpkg.com/browse/waveform-playlist/

• If you want to download and run the already compiled website, navigate to folder /dist and run python -m SimpleHTTPServer 8000. The website will be available at localhost:8000/waveform-playlist.

Basic Usage

https://github.com/naomiaro/waveform-playlist/blob/main/examples/basic-html/

https://github.com/naomiaro/waveform-playlist/tree/main/examples/basic-express/

import WaveformPlaylist from "waveform-playlist";

var playlist = WaveformPlaylist({
  samplesPerPixel: 3000,
  mono: true,
  waveHeight: 70,
  container: document.getElementById("playlist"),
  state: "cursor",
  colors: {
    waveOutlineColor: "#E0EFF1",
    timeColor: "grey",
    fadeColor: "black",
  },
  controls: {
    show: false,
    width: 150,
  },
  zoomLevels: [500, 1000, 3000, 5000],
});

playlist
  .load([
    {
      src: "media/audio/Vocals30.mp3",
      name: "Vocals",
      gain: 0.5,
    },
    {
      src: "media/audio/BassDrums30.mp3",
      name: "Drums",
      start: 8.5,
      fadeIn: {
        duration: 0.5,
      },
      fadeOut: {
        shape: "logarithmic",
        duration: 0.5,
      },
    },
    {
      src: "media/audio/Guitar30.mp3",
      name: "Guitar",
      start: 23.5,
      fadeOut: {
        shape: "linear",
        duration: 0.5,
      },
      cuein: 15,
    },
  ])
  .then(function () {
    // can do stuff with the playlist.
  });

Playlist Options

var options = {
  // webaudio api AudioContext
  ac: new (window.AudioContext || window.webkitAudioContext)(),

  // DOM container element REQUIRED
  container: document.getElementById("playlist"),

  // sample rate of the project. (used for correct peaks rendering)
  sampleRate: new (
    window.AudioContext || window.webkitAudioContext
  ).sampleRate(),

  // number of audio samples per waveform peak.
  // must be an entry in option: zoomLevels.
  samplesPerPixel: 4096,

  // whether to draw multiple channels or combine them.
  mono: true,

  // enables "exclusive solo" where solo switches between tracks
  exclSolo: false,

  // default fade curve type.
  fadeType: "logarithmic", // (logarithmic | linear | sCurve | exponential)

  // whether or not to include the time measure.
  timescale: false,

  // control panel on left side of waveform
  controls: {
    // whether or not to include the track controls
    show: false,

    // width of controls in pixels
    width: 150,

    // whether to render the widget or not in the controls panel.
    widgets: {
      // Mute & solo button widget
      muteOrSolo: true,

      // Volume slider
      volume: true,

      // Stereo pan slider
      stereoPan: true,

      // Collapse track button
      collapse: true,

      // Remove track button
      remove: true,
    },
  },

  colors: {
    // color of the wave background
    waveOutlineColor: "white",

    // color of the time ticks on the canvas
    timeColor: "grey",

    // color of the fade drawn on canvas
    fadeColor: "black",
  },

  // height in pixels of each canvas element a waveform is on.
  waveHeight: 128,

  // width in pixels of waveform bars.
  barWidth: 1,

  // spacing in pixels between waveform bars.
  barGap: 0,

  // interaction state of the playlist
  // (cursor | select | fadein | fadeout | shift)
  state: "cursor",

  // (line | fill)
  seekStyle: "line",

  // Array of zoom levels in samples per pixel.
  // Smaller numbers have a greater zoom in.
  zoomLevels: [512, 1024, 2048, 4096],

  // Whether to automatically scroll the waveform while playing
  isAutomaticScroll: false,

  // configuration object for the annotations add on.
  annotationList: {
    // Array of annotations in [Aeneas](https://github.com/readbeyond/aeneas) JSON format
    annotations: [],

    // Whether the annotation texts will be in updateable contenteditable html elements
    editable: false,

    // User defined functions which can manipulate the loaded annotations
    controls: [
      {
        // class names for generated <i> tag separated by '.'
        class: "fa.fa-minus",

        // title attribute for the generated <i> tag
        title: "Reduce annotation end by 0.010s",

        // function which acts on the given annotation row
        // when the corresponding <i> is clicked.
        action: (annotation, i, annotations, opts) =&gt; {
          // @param Object annotation - current annotation
          // @param Number i - index of annotation
          // @param Array annotations - array of annotations in the playlist
          // @param Object opts - configuration options available
          //      - opts.linkEndpoints
        },
      },
    ],

    // If false when clicking an annotation id segment
    // playback will stop after segment completion.
    isContinuousPlay: false,

    // If true annotation endpoints will remain linked when dragged
    // if they were the same value before dragging started.
    linkEndpoints: false,

    // pass a custom function which will receive the mastergainnode for this playlist and the audio context's destination.
    // if you pass a function, you must connect these two nodes to hear sound at minimum.
    // if you need to clean something up when the graph is disposed, return a cleanup function. Waveform Playlist will cleanup the nodes passed as arguments.
    effects: function (masterGainNode, destination, isOffline) {
      // analyser nodes don't work offline.
      if (!isOffline) masterGainNode.connect(analyser);
      masterGainNode.connect(destination);

      // return function cleanup() {
      //   // if you create webaudio nodes that need to be cleaned up do that here
      //   // see the track effects example.
      // };
    },
  },
};

Track Options

{
  // a media path for XHR, a Blob, a File, or an AudioBuffer object.
  src: 'media/audio/BassDrums30.mp3',

  // name that will display in the playlist control panel.
  name: 'Drums',

  // volume level of the track between [0-1]
  gain: 1,

  // whether the track should initially be muted.
  muted: false,

  // whether the track should initially be soloed.
  soloed: false,

  // time in seconds relative to the playlist
  // ex (track will start after 8.5 seconds)
  // DEFAULT 0 - track starts at beginning of playlist
  start: 8.5,

  // track fade in details
  fadeIn: {
    // fade curve shape
    // (logarithmic | linear | sCurve | exponential)
    shape: 'logarithmic',

    // length of fade starting from the beginning of this track, in seconds.
    duration: 0.5,
  },

  // track fade out details
  fadeOut: {
    // fade curve shape
    // (logarithmic | linear | sCurve | exponential)
    shape: 'logarithmic',

    //length of fade which reaches the end of this track, in seconds.
    duration: 0.5,
  }

  // where the waveform for this track should begin from
  // ex (Waveform will begin 15 seconds into this track)
  // DEFAULT start at the beginning - 0 seconds
  cuein: 15,

  // where the waveform for this track should end
  // ex (Waveform will end at 30 second into this track)
  // DEFAULT duration of the track
  cueout: 30,

  // custom class for unique track styling
  customClass: 'vocals',

  // custom background-color for the canvas-drawn waveform
  waveOutlineColor: '#f3f3f3',

  // interaction states allowed on this track.
  // DEFAULT - all true
  states: {
    cursor: true,
    fadein: true,
    fadeout: true,
    select: true,
    shift: true,
  },

  // pre-selected section on track.
  // ONLY ONE selection is permitted in a list of tracks, will take most recently set if multiple passed.
  // This track is marked as 'active'
  selected: {
    // start time of selection in seconds, relative to the playlist
    start: 5,

    // end time of selection in seconds, relative to the playlist
    end: 15,
  },

  // value from -1 (full left pan) to 1 (full right pan)
  stereoPan: 0,

  // pass a custom function which will receive the last graphnode for this track and the mastergainnode.
  // if you pass a function, you must connect these two nodes to hear sound at minimum.
  // if you need to clean something up when the graph is disposed, return a cleanup function. Waveform Playlist will cleanup the nodes passed as arguments.
  effects: function(graphEnd, masterGainNode, isOffline) {
    var reverb = new Tone.Reverb(1.2);

    Tone.connect(graphEnd, reverb);
    Tone.connect(reverb, masterGainNode);

    return function cleanup() {
      reverb.disconnect();
      reverb.dispose();
    }
  }
}

Playlist Events

Waveform Playlist uses an instance of event-emitter to send & receive messages from the playlist.

import EventEmitter from "event-emitter";
import WaveformPlaylist from "waveform-playlist";

var playlist = WaveformPlaylist(
  {
    container: document.getElementById("playlist"),
  },

  // you can pass your own event emitter
  EventEmitter()
);

// retrieves the event emitter the playlist is using.
var ee = playlist.getEventEmitter();

An example of using the event emitter to control the playlist can be found in /dist/js/examples/emitter.js

Events to Invoke

Events to Listen to

Tests

npm test

Development without example changes

npm install && npm start

This will install dependencies and start the webpack server.

Development with example changes

gem install jekyll

Jekyll is needed if changes to the example pages will be done.

npm install && npm run dev

This will build and watch the jekyll site and startup the webpack dev server.

Credits

Originally created for the Airtime project at Sourcefabric

The annotation plugin has been sponsored by a fond Italian TED volunteer transcriber hoping to make the transcription process of TEDx talks easier and more fun.

Books

Currently writing: Mastering Tone.js. Get notified by Leanpub when I publish.

License

MIT License
