Telegram bot nodes for Node-RED

...

This package contains a receiver and a sender node which act as a Telegram Bot. The only thing required is the token that can be retrieved by the @botfather Telegram Bot.

Thanks for your donation

If you want to support this free project. Any help is welcome. You can donate by clicking one of the following links:

Credits

• dvv (Vladimir Dronnikov): for providing the saveDataDir configuration option
• snippet-java: for adding venue messages and for providing the markdown problem fallback
• greenstone7: for providing the callback query node
• dceejay: for cleaning up the project
• psyntium: for providing the weblink for additional content link videos, pictures, animations, audio files
• MatthiasHunziker: for extending the callback query node to support generic events
• Skiepp: for providing the send chat action idea.
• MK-2001: for providing the sendMediaGroup fuhttps://github.com/yagop/node-telegram-bot-apinction
• cowchimp: for adding the support for Node-RED v1.0+ (async)
• JokerQyou: for adding the support for using webhook without certificate
• bonastreyair: for providing ideas for improving the command node
• StephanStS: for extension/clearification/beautification of Readme.md and finding minor bugs
• Diddlik: for extending webhook options
• MorbidDevil: for extending answerInlineQuery with options
• daredoes: for providing the webhook decumentation on Unraid/Docker with SWAG/NGINX/REVERSE-PROXY
• kickouille: for fixing the payment functions and providing the full payment example flow
• skrashevich: for providing approveChatJoinRequest, declineChatJoinRequest
• ShotokanZH: for providing the web app data example
• Dodoooh: for providing the send to topic example flow
• MariusSchiffer: for improving documentation
• ptath: for providing pullrequest for setChatAdministratorCustomTitle
• gmag11: for providing pullrequest for enhancing getFile

Installation

You can install the nodes using node-red's "Manage palette" in the side bar.

Or run the following command in the root directory of your Node-RED installation

npm install node-red-contrib-telegrambot --save

Note that the minimum node-red version 1.3.7 and minimum nodejs version is 12.x.

Dependencies

The nodes are tested with Node.js v18.20.0 and Node-RED v3.1.9.

• node-telegram-bot-api
• socks-proxy-agent

Changelog

Changes can be followed here.

Hints

• It is recommended to always do a full deploy when you changed some of the nodes of this library to prevent unexpected behavior.
• Do not use a token in more than one configuration node at the same time as the telegram server does not allow multiple connections for one bot.

Usage

Basics

Receiver and sender nodes

The Telegram receiver node receives messages from the bot and sends a message object with the following layout:

msg.payload contains the message details with the following elements:

• chatId : The unique id of the chat. This value needs to be passed to the out node when responding to the same chat
• type : The type of message received. Types see table below
• content : Received message content: String or file_id, or object with full data (location, contact)
• Additional:
• date (Optional element): Date the message was sent in Unix time (integer)
• further elements depending on the type (see table below)

msg.originalMessage contains the original message object from the underlying node-telegram-bot-api lib.

The Telegram sender node sends the content to a specified username or chat. The node's input msg object is similar to the output msg object of the Telegram receiver node. Some of the additional elements are mandatory and some are optional (see table below).

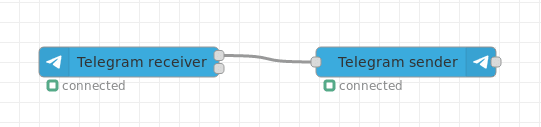

A simple echo flow looks like:

echo flow
Fig. 1: Simple echo flow

Types of telegram messages

The following message contents can be sent and received (given in msg.payload.type):

• message - content is text
• photo - content is the file_id of the photo with the highest resolution
• audio - content is the file_id of the audio file
• document - content is the file_id of the document
• sticker - content is the file_id of the sticker
• animation - content is the file_id of the animation file
• dice - content is a dice
• video - content is the file_id of the video file
• video_note - content is the file_id of the video note file
• voice - content is the file_id of the voice file
• location - content is an object with latitude and longitude
• venue - content is the venue object
• contact - content is the contact information object
• poll - content is a poll object
• invoice - content is an invoice for a payment
• successful_payment - content is a service message about a successful payment

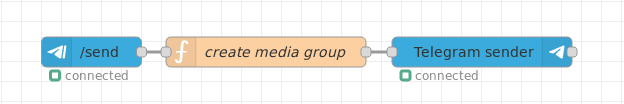

Note that media groups are sent/received not as a group, but as separate messages of type photo and video.

The following msg.payload.type contents indicate changes in the group or channel itself:

• new_chat_title - content is the new chat title
• new_chat_photo - content is the file_id (see photo)
• new_chat_members - content is an array of new chat members
• left_chat_member - content is an object describing the chat member that left
• delete_chat_photo - content is true
• pinned_message - content is the pinned message object
• channel_chat_created - content is true
• group_chat_created - content is true
• supergroup_chat_created - content is true
• migrate_from_chat_id - content is the chat id. The chat property describes the chat.
• migrate_to_chat_id - content is the chat id. The chat property describes the chat.

For more details of the content types listed above also refer to the telegram api description.

Message types and corresponding content elements in msg.payload

The msg.payload contains several elements additional to chatId, type and content. These additional elements depend on the contents of msg.payload.type. In addition the format of msg.payload.content depends on the type.

The following table shows the relationship between the message type and additional elements.

Legend:

• - : Element is not present in msg.payload structure
• + : Element is mandatory in msg.payload structure
• optional : Element is optional in Sender node and always present in Receiver node
• true : Element is mandatory and has to be set to boolean value true

Tab. 1: Data elements in msg.payload depending on msg.payload.type

For more details of the content types listed above also refer to the telegram api description and the telegram bot api description.

Error handling

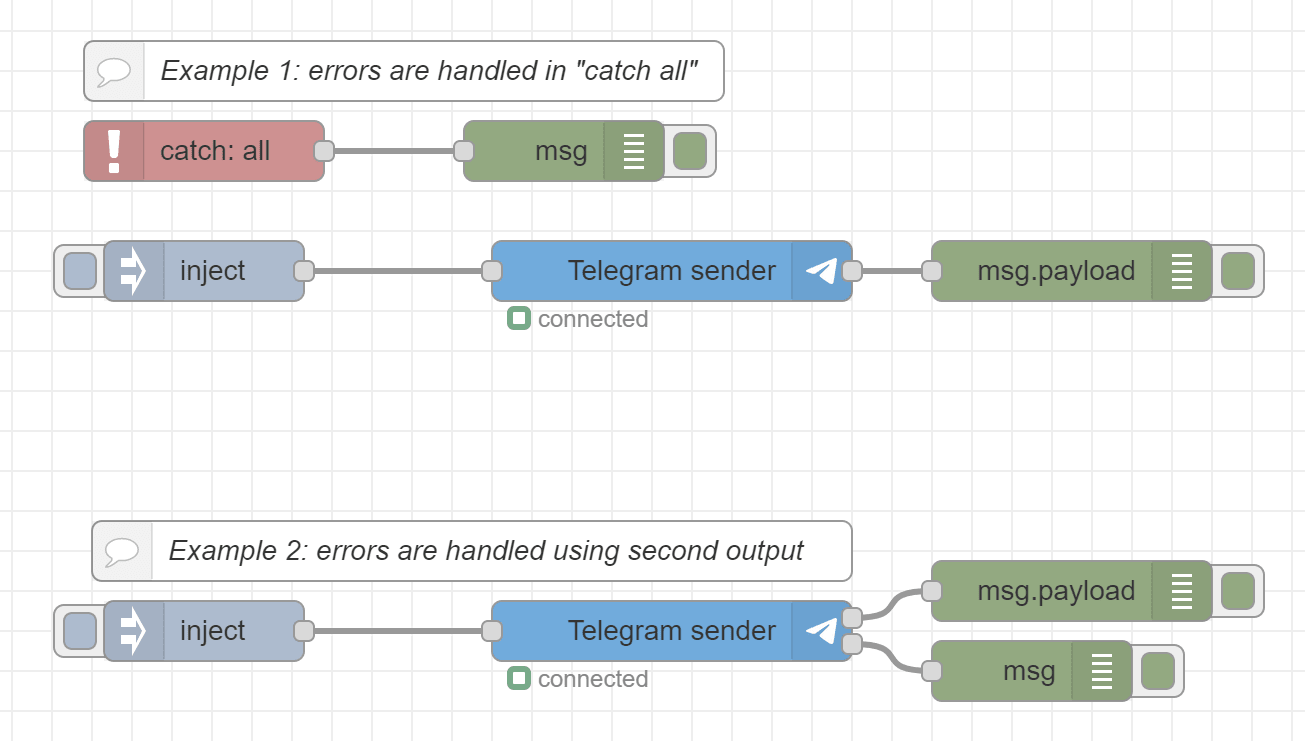

There are two ways of how to handle errors in the sender node:

1. Default: all errors can be handled in a catch-all node.
2. Enable second output: errors are sent to this additional output. The msg contains an additional msg.error property.

Fig. 2: Sender node dialog

error handling example flow

Configuration Node

The mandatory configuration entries are

• the Bot-Name and
• the Token

which you received from @botfather when creating a new bot.

Fig. 3: Configuration node dialog

Reading token from external location

Instead of entering the token from bot father directly into the token field, you can also instruct the node to read ot from on external location.

Reading token from environment variable

Environment variables are entered in the settings.js of node-red before startup.

process.env.BOT_TOKEN = "";

The token field in the configuration node must then look like

{env.get("BOT_TOKEN")}

Configuration properties Users and ChatIds

The node contains the two optional properties: Users and ChatIds. You may enter a list of names and/or chatIds that are authorized to use this bot. This is useful, if the bot should only accept incoming calls from dedicated persons resp. chat groups. The values in the property fields must be separated by a comma e.g.: Hugo,Sepp,Egon Leave the fields Users and ChatIds blank if you do not want to use this feature to mask senders.

User names can only be used, if a telegram user has set its Username in the Telegram settings. The following screenshot shows the according settings dialog in the Telegram app where you can set your personal preferences:

Fig. 4: Telegram app settings dialog (example Android phone app)

If no Username is set you can only filter via the ChatId property.

Configuration property Server URL

This is the server url of the telegram server (https://api.telegram.org). If you use a different instance of a telegram server somewhere else (e.g. on premise) you could then use this property to connect to that server instead the global one.

Typically this field is left blank.

Configuration property Test Environment

This enables the test environment see: (https://core.telegram.org/bots/features#testing-your-bot).

Typically this checkbox is unchecked.

Configuration property Update Mode

The update mode can be chosen from Polling or Webhook.

Polling mode

By default the bot is polling every 300ms for new messages. This polling interval can be set via the property Poll Interval in the Do you mean a table which describes the logic within the function getMessageDetails(botMsg)? E.g. a table with these coloumns:

• text: chatId, messageId, type (= "message"), content (text)
• photo: chatId, messageId, type (= "photo"), content (photo[index].file_id with index = different photo sizes), caption, date, blob (= true), photos (???), mediaGroupId
• audio: chatId, messageId, type (= "audio"), content (file_id), cation, date, blob (= true) ...Polling Options.

Webhook mode

The Webhook method may be chosen to avoid polling.

Fig. 5: Example configuration for webhook mode

As setting up a webhook can be very complex depending on the infrastructure this was moved to a seprate readme file. See also WEBHOOK.md

None mode

The None method may be chosen to avoid traffic due to polling or incoming webhook calls. You can only send messages using the sender node but you can not receive any data.

Configuration property IP address family

You can force a certain IP version to be used when making requests to the telegram server. Normally this is up to the operating system und you can just keep the default setting "Any". If you discover problems e.g. the telegram server is unreachable. Then you can try to force using IPv4 or IPv6.

Configuration property flag Use SOCKS

SOCKS4/5 proxy support is optional when running behind a SOCKS4/5 proxy that requires authentication. In this case, additional configuration properties have to be set in the configuration node.

As setting up a socks5 proxy can be very complex depending on the infrastructure this was moved to a seprate readme file. See also SOCKS5.md

Configuration property flag Verbose Logging

The Verbose Logging flag should only be activated when debugging network problems as this will create cyclic warnings when the network is down.

Receiver Node

This node can receive telegram messages sent to the bot and (under certain circumstances) also receive messages from a chat.

Fig. 6: Receiver node appearance

Telegram messages sent directly to the bot are automatically received (if not masked via the configuration node property Users).
To be able to receive telegram chat messages, invite the bot to a chat (/setprivacy must be configured correctly!). If the configuration node property ChatIds is not set, all chat messages are received.

You can control if the bot receives every message by calling /setprivacy @botfather (refer also to there).

Note that there are certain limitations for bots in channels, groups and super groups. You should make the bot admin or grant the rights if you discover problems. Bot to bot communication is also not allowed by telegram. Please read the telegram bot documentation.

Configuration

Configuration property Download Directory

When the receiver node receives data like videos, documents and so on, the file is downloaded automatically to the local harddisc when the node's property Download Directory is set in the configuration node. The directory may also be part of the message payload: msg.payload.path. In addition to that the message object may contain the direct download link in the payload: msg.payload.weblink.

Configuration property Filter

Normally, a receiver node receives all content that is sent to the bot. However if you have command nodes next to a receiver you can enable the commands flag in the configuration property Filter so that commands meant for a command node will not be handled by the receiver node.
I.e. the command message then only appears in the configured command node and not in this node.

Outputs

The original message from the underlying node library is stored in msg.originalMessage. The msg.payload contains the most important data like chatId, type and content. Additional elements are present in the msg.payload structure and depend on the message type. These additional elements are described in the table Tab. 1 above.

The content format depends on the message type. E.g. if you receive a text message then the content format is a string, if you receive a location, the content format is an object containing latitude and longitude. See also "available methods" in the api core description.

The node has two outputs:

1. The node's upper output (Standard Output) is used if the message is from an authorized user.
2. The node's lower output (Unauthorized Output) is used when security is applied (via configuration properties Users and ChatIds) and the user is not authorized to access the bot.

Sender Node

This node sends contents to a telegram user or to a telegram chat. It is triggered by an incoming msg object at its input containing all necessary telegram information.

Fig. 7: Sender node appearance

Inputs

The input msg.payload must contain the following elements:

• msg.payload.chatId - chatId or an array of chatIds if you want to send the same message to several chats
• msg.payload.type - e.g. message, document, photo, etc. (see section Receiver Node above)
• msg.payload.content - your message content (e.g. message text)

Additional elements are present in the msg.payload structure and depend on the message type. These additional elements are described in the table Tab. 1 above.

The content format depends on the message type. E.g. if you send a text message then the content format is a string, if you send a location, the content format is an object containing latitude and longitude. See also "available methods" in the api core description.

Outputs

Basically the input msg object is forwarded unchanged to the node's output.

The node has up to two outputs (selectable via the Send errors to second output flag):

1. The node's first/upper output (Standard Output) is used if the message was successfully transmitted.
2. The node's second/lower output (Error Output) is used when an exception occured. The output msg object contains a string property msg.error.

Issueing API commands

Additionally to sending content, the sender node can be used to issue commands direct to the API. In this case the msg.payload elements contain (see examples for further details):

• msg.payload.type - one of the commands listed below
• msg.payload.content - required command arguments
• msg.payload.chatId - chatId if required
• msg.payload.options (optional) - additional command arguments

The msg.payload.type needs to be set to one of the following values:

The content format of the command arguments (required and optional) depends on the api command.
See also "available methods" in the api core description.

Command Node

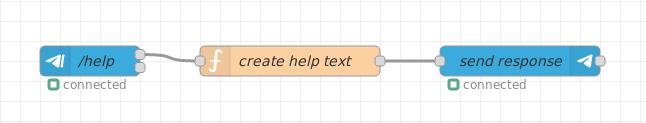

The command node can be used for triggering a message when a specified command is received: e.g. /help. See examples below. Note that commands always start with a / like /help, /start, /stop. if you have several bots in one group chat implementing the same command e.g. /help you should send commands directly to a dedicated bot using the full notation /help@YourBot to avoid that different bots would get triggered at once. It it recommended to turn on the strict mode in this case.

Fig. 8: Command node appearance

Configuration

The node's configuration contains the following special properties:

• Command: The command which shall be implemented.
  Commands usually start with a / like for example /foo. According to the telegram api documentation the command should be issued following the bot name like /foo@YourBot. This is important when you add several different bots to one single group chat.
• Register at telegram server flag: To automatically register the command and the description at the telegram server.
• Description: The description is used when the command should be published via /setMyCommands at the telegram server. / It is optional if the Register at telegram server flag is not checked.
• Language: The 2 digit language code (see ISO-639-1). If this field is empty it will be shown in every language, otherwise only to the users that have set the language of their client to this language.
• Scope: The scope to register the command to: see also BotCommandScope.
• Strict in group chats flag: To avoid that the bot handles commands that are not directly sent to it using the long notation (e.g. /foo@YourBot) you can set the "strict" mode in the options of the command node. In this case the bot only accepts the full command notation in group chats.
• Has response output flag: This enables the second output (Unathorized Output). Otherwise the node only has one single output.
• Use Regex flag: Allows the usage of regular expressions as command. E.g. ^/toggle_ allows all commands starting with /toggle_.
• Remove Command flag: This optional flag is used when Use Regex is checked. If checked it removed the matched command from the beginning of the message. If your command contains addressinformation you should uncheck this flag to be able to parse this information on your own.

Outputs

The node has up to two outputs (selectable via the Has response output flag):

1. The node's first/upper output (Standard Output) is used if the message is from an authorized user and it contains a specified command at the beginning of the message.
2. The node's second/lower output (Unauthorized Output) is used in all other cases. This may be the case when security is applied (via configuration properties Users and ChatIds) and the user is not authorized to access the bot or if it is from an autorized user and the message does not contain a specified command.

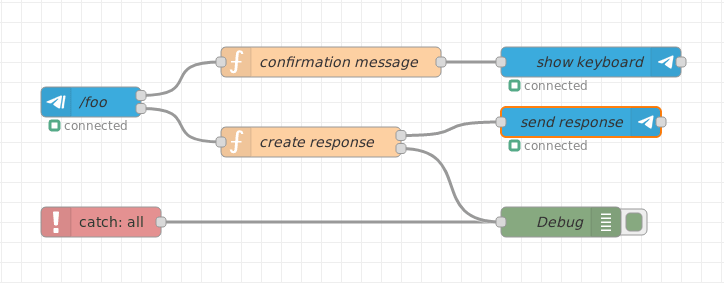

The second output is useful when you want to use a keyboard. See example below.
It is only issued if a command was received before. If another command was triggered in the meantime, the pending status of the first one is reset. The state is stored per user and per chat.

Event Node

A telegram node that triggers the output when a event is received from a chat.

Fig. 9: Event node appearance

The node receives events from the bot like:

• Callback Query of inline keyboards. See example-flow inline keyboard flow in examples folder.
• Inline Query of inline bots. See Inline mode in the bot API.
• Edited Message which is triggered when someone alters an already sent message.
• Edited Message Text which is triggered when someone alters an already sent message text.
• Edited Message Caption which is triggered when someone alters an already sent caption e.g. of a photo.
• Channel Post which is triggered when the bot is member of a public channel (/setprivacy to disabled!).
• Edited Channel Post which is triggered when someone alters an already sent message in a public channel.
• Edited Channel Post Text which is triggered when someone alters an already sent message text in a public channel.
• Edited Channel Post Caption which is triggered when someone alters an already sent caption of e.g. a photo in a public channel.
• Pre Checkout Query which is triggered when someone issues a payment (see send invoice).
• Shipping Query which is triggered when someone issues a shipping.
• Chosen Inline Result which is triggered when a user has chosen a result from an inline query.
• Poll which is triggered when a poll is created.
• Poll Answer which is triggered when a poll is answered.
• My Chat Member which is triggered when the status of the bot is changed.
• Chat Join Request which is triggered when a chat join request is issued. Note that - Chat Member is deactivated as it requires special rights by the bot and modifications in polling.

Configuration

The Event to be received is configured via the node's configuration dialog:

Fig. 10: Event node configuration dialog

With the Event property the listening event is selcted.

The Auto-Answer checkbox can be set for Callback_Query. If activated, you do not need to send an explicit answer to the bot on your own.

Outputs

The output msg.payload typically contains the parsed data as follows:

• chatId: Unique identifier for this chat
• messageId: Telegram message identifier
• type: Event type (see configurable events above)
• date: Timestamp
• content: The actual UTF-8 text of the message Other properties may be present depending on the type of message.

The output msg.originalMessage contains the raw data object from the underlying library, and contains many useful properties.

See also the following descriptions for the event handling:

• callback_query, edited_message, channel_post, edited_channel_post: Getting updates
• edited_message_text, edited_message_caption: Updating messages
• inline_query: Inline mode

Reply Node

A telegram node that is triggered when someone answered to a specified message.

Fig. 11: Reply node appearance

The reply node waits for an answer to a specified message. It should be used in conjunction with the sender node.

Input

Standard Input: Calls the onReplyToMessage of the bot.

Output

Standard Output: Contains the result from the onReplyToMessage call.

This node may be useful, when the bot e.g. sent a message and you want to take some action when someone responded to this specified message. Responding to messages is done by clicking on the message in your client and choose answer from the popup.

The msg.payload contains:

• chatId : Destination chatId
• sentMessageId : The id of the previously sent message in the chat
• content : The message content.

Control Node

This node can be used to stop, start, restart a bot (config node). It send a message to the output after every poll cycle. See the example flow control bot in the examples folder.

Input

The msg.payload contains:

• command : 'start' | 'stop' | 'restart' | 'command'
• delay : Optional delay (between stop and start) in milliseconds for 'restart'.

Output

Standard Output: Contains the msg object passed to the input or a message with poll information:

• cycle : Polling cycle number.
• duration : Duration in milliseconds for the request.

Keyboards

General

Keyboards can be used to interact with the user by displaying a flexibly definable keyboard. The user then presses one of the keys to give his selection.
Two different keyboard types are available:

• Custom Keyboards - These are keyboards which replace the standard keyboard. They are located below the message enter area.
• Inline Keyboards - These are keyboards which are inline in the message area.

A remarkable feature of Inline Keyboards is the ability to change them on the fly. See examples section for further details.

With keyboards also complex keyboard procedures with several hierarchy levels can be implemented to direct the user in a step by step button pressing procedure.

Custom keyboards

Examples for Custom keyboards can be seen in the Keyboards section of the telegram bot description.

Custom keyboards act with message nodes and telegram receiver nodes to handle the keyboard procedure, which is as follows:

1. The appearance of the keyboard is initiated via a message sent to the bot. In the message the keyboard configuration is defined within the msg.payload.options property.
2. The user presses a displayed key.
3. The key text is sent back via a message. This message is received with a receiver node and can then be evaluated.

The keyboard configuration contains the key description, layout and further options. A description of it can be found in the ReplyKeyboardMarkup section.
See also the custom keyboard example.

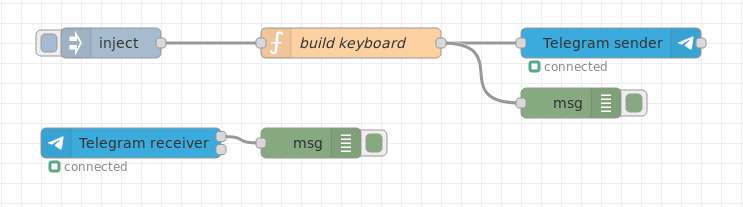

A basic flow handling a custom keyboard with its reply shows the following figure.

custom keyboard basic flow
Fig. 12: Custom keyboard basic flow example

var opts = {
  reply_markup: JSON.stringify({
    keyboard: [
      ['A1'],
      ['A2']],
      'resize_keyboard' : true,
      'one_time_keyboard' : true
  })
};


msg.error = false;
// Dialogaufbau
msg.payload.content = 'Selection?';
msg.payload.options = opts;


msg.payload.chatId = 123445;
msg.payload.messageId = 99;
msg.payload.sentMessageId = 99;
msg.payload.type = "message";

return [ msg ];

The look&feel at a mobile device could look like the following figure:

Fig. 13: Custom keyboard example screenshot

The answering options are located below the user text input field.

Several options for the keyboard layout can be found there in the Telegram Bot API SDK description.
The keyboard layout shown in Fig. 12 (given in the create response node) is

keyboard: [
  ['Yes'],
  ['No']],

Another example of a different key layout may be to arrange several keys in one line. This may be like:

keyboard: [
  ['Yes','No','Maybe'],
  ['Conditional']],

This leads to a layout like:

Fig. 14: Custom keyboard example screenshot with different layout

Inline keyboards

Examples for Inline keyboards can be seen in the Inline keyboards section of the telegram bot description.

Inline keyboards act with message nodes and event nodes (event Callback Query) to handle the keyboard procedure, which is as follows:

1. The appearance of the keyboard is initiated via a message sent to the bot. In the message the keyboard configuration is defined within the msg.payload.options property.
2. The user presses a displayed key.
3. The key text is sent back via an Callback Query event. This message is received with an event node and can then be evaluated.

The keyboard configuration contains the key description, layout and further options. A description of it can be found in the InlineKeyboardMarkup section.
See also the inline keyboard example.

A basic flow handling an inline keyboard with its reply shows the following figure.

inline keyboard basic flow
Fig. 15: Inline keyboard basic flow example

var opts = {
  reply_markup: JSON.stringify({
    "inline_keyboard": [[
                {
                    "text": "A1",
                    "callback_data": "1"
                },
                {
                    "text": "A2",
                    "callback_data": "2"
                }]
            ]
  })
};

msg.payload.content = "Selection?";
msg.payload.options = opts;
msg.payload.chatId = 12345;
msg.payload.messageId = 99;
msg.payload.sentMessageId = 99;
msg.payload.type = "message";

return [ msg ];

The look&feel at a mobile device could look like the following figure:

Fig. 16: Inline keyboard example screenshot

The answering options are located within the dialog field.

Several options for the keyboard layout can be found there in the Telegram Bot API SDK description.
The keyboard layout shown in Fig. 15 (given in the inline keyboard message node) is

"inline_keyboard": [[
     {"text": "Yes","callback_data": "FOO YES"},
     {"text": "No", "callback_data": "FOO NO"}
]]

Another example of a different key layout may be to arrange several keys in one line. This may be like:

"inline_keyboard": [[
      {"text": "Yes","callback_data": "FOO YES"},
      {"text": "No","callback_data": "FOO NO"}],
    [
      {"text": "#1","callback_data": "FOO ONE"},
      {"text": "#2","callback_data": "FOO TWO"},
      {"text": "#3","callback_data": "FOO THREE"}
    ],
    [
      {"text": "dog","callback_data": "FOO DOG"},
      {"text": "eel","callback_data": "FOO EEL"},
      {"text": "cow","callback_data": "FOO COW"},
      {"text": "cat","callback_data": "FOO CAT"}
    ]
]

This leads to a layout like:

Fig. 17: Inline Keyboard example screenshot with different layout

Examples

Remark: Example flows are present in the examples subdirectory. In Node-RED they can be imported via the import function and then selecting Examples in the vertical tab menue.
All example flows can also be found in the examples folder of this package.

Implementing a simple echo

This example is self-explaining. The received message is returned to the sender.

echo flow
Fig. 18: Simple echo flow

Implementing a /help command

This flow returns the help message of your bot. It receives the command and creates a new message, which is returned:

help message flow
Fig. 19: Help command flow example

var helpMessage = "/help - shows help";

helpMessage += "\r\n/foo - opens a dialog";

helpMessage += "\r\n";
helpMessage += "\r\nYou are welcome: "+msg.originalMessage.from.username;
helpMessage += "\r\nYour chat id is " + msg.payload.chatId;
helpMessage += "\r\n";

msg.payload.content = helpMessage;

return msg;

The output looks on a mobile device like the following figure:

Fig. 20: Help command screenshot

Note: You can access the sender's data via the msg.originalMessage property.

Implementing a custom keyboard

Custom keyboards are very useful for getting additional data from the sender. When the command is received the first output is triggered and a dialog is opened:

keyboard flow
Fig. 21: Keyboard example

The answer is send to the second output triggering the lower flow. Data is passed via global properties here.

context.global.keyboard = { pending : true };

var opts = {
  reply_to_message_id: msg.payload.messageId,
  reply_markup: JSON.stringify({
    keyboard: [
      ['Yes'],
      ['No']],
      'resize_keyboard' : true,
      'one_time_keyboard' : true
  })
};

msg.payload.content = 'Really?';
msg.payload.options = opts;

return [ msg ];

if (context.global.keyboard.pending) {
    context.global.keyboard.pending = false;

    if(msg.payload.content === 'Yes') {
        msg.payload.content = 'Yes';
        return [msg, null];
    }
    else     {
        msg.payload.content = 'No';
        return [null, msg];
    }
}

Implementing an on reply node

Next to the keyboard the bot could also ask a question and wait for the answer. When the user responds to a specified message the telegram reply node can be used:

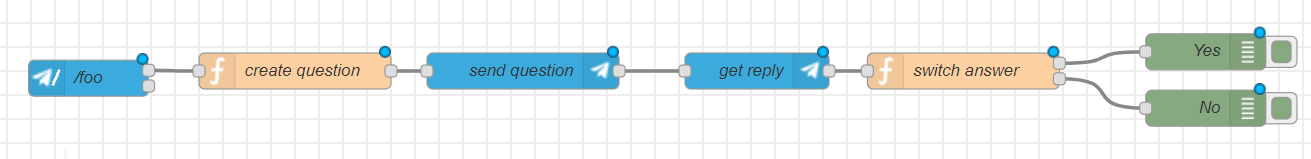

onreplymessage flow
Fig. 22: On reply example flow

The question is sent to the chat. This node triggers the on reply node waiting for the answer.

Note: The user has to explicitly respond to this message. If the user only writes some text, the get reply node will not be triggered.

msg.payload.type = 'message';
msg.payload.content = 'Really?';
msg.payload.options = {reply_to_message_id : msg.payload.messageId}

return [ msg ];

if(msg.payload.content === 'Yes')
{
    return [msg, null];
}
else
{
    return [null, msg];
}

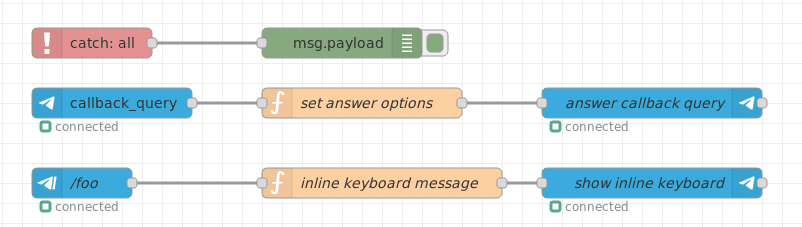

Implementing an inline keyboard

An inline keyboard contains buttons that can send a callback query back to the bot to trigger any kind of function. When the command is received the first output is triggered and a inline keyboard is shown:

inlinekeyboard flow
Fig. 23: Inline keyboard example flow

The callback query is received by the event node. It must be answered like shown as follows. There you can add your code to trigger the desired bot command. The answer contains the callback query data in msg.payload.content.

var opts = {
  reply_to_message_id: msg.payload.messageId,
  reply_markup: JSON.stringify({
    "inline_keyboard": [[
                {
                    "text": "Yes",
                    "callback_data": "FOO YES"
                },
                {
                    "text": "No",
                    "callback_data": "FOO NO"
                }]
            ]
  })
};

msg.payload.content = 'Are you sure?';
msg.payload.options = opts;

return [ msg ];

var show_alert = false; // you can set this to true to open a dialog with the answer in the client.

// msg.payload.content contains the callback data from the keyboard.
// You may change this value here.
msg.payload.options = show_alert;

return [ msg ];

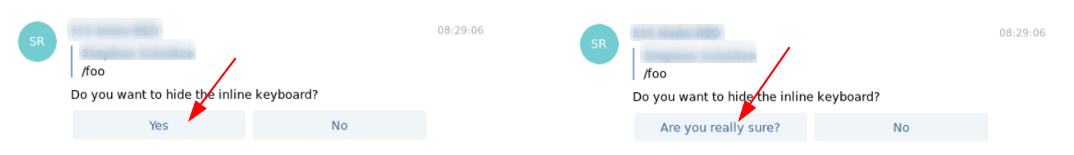

Edit an inline keyboard

An inline keyboard can be modified using the 'editMessageReplyMarkup' instruction. To be able to modify an existing message you need to know the messageId of the message of the keyboard. A sample flow is provided in the examples folder and could look like this:

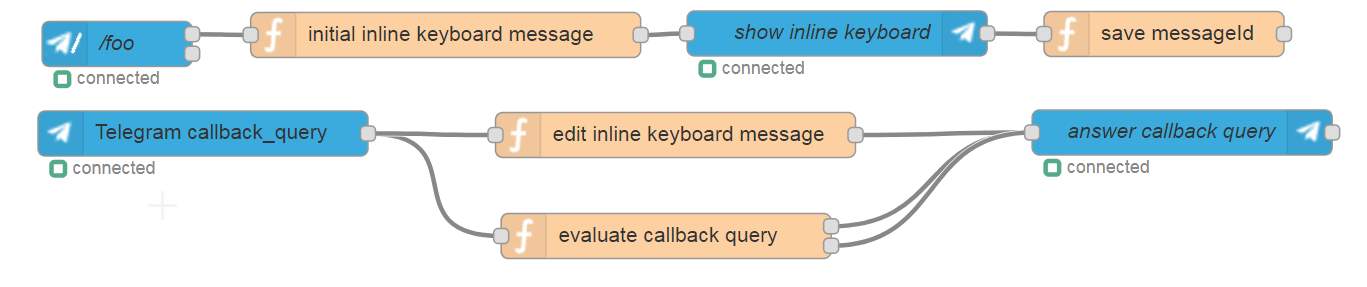

editinlinekeyboard flow
Fig. 24: Edit an inline keyboard example flow

The message id needs to be saved in the flow or global context (via node save messageId). This is just a demo assuming that there is only one single chat.

As next the initial keyboard has to be replaced with a modified one using the api command editMessageReplyMarkup command as type (via node edit inline keyboard message).
As an alternative to 'editMessageReplyMarkup you can also use the api command editMessageText to replace the keyboard and also the text as given in the function example edit message text.

The switch node evaluate callback query just handles the response and hides the keyboard using another api command deleteMessage.

context.global.keyboard = { pending : true, messageId : msg.payload.messageId };

var opts = {
  reply_to_message_id: msg.payload.messageId,
  reply_markup: JSON.stringify({
    "inline_keyboard": [[
                {
                    "text": "Yes",
                    "callback_data": "FOO YES"
                },
                {
                    "text": "No",
                    "callback_data": "FOO NO"
                }]
            ]
  })
};

msg.payload.content = 'Do you want to hide the inline keyboard?';
msg.payload.options = opts;

return [ msg ];

// We store the messageId to be able to edit this reply in the callback query.
context.global.keyboard.messageId = msg.payload.sentMessageId;
return [ msg ];

// This is the message id of the initial keyboard that is simply exchanged by a new one.
var messageId = context.global.keyboard.messageId;

// This is a sample of how to send a second inline keyboard with modified buttons
var reply_markup = JSON.stringify({
    "inline_keyboard": [[
                {
                    "text": "Are you really sure?",
                    "callback_data": "FOO YES REALLY"
                },
                {
                    "text": "No",
                    "callback_data": "FOO NO"
                }]
            ]
  });


var options = {
    chat_id : msg.payload.chatId,
    reply_markup : reply_markup,
    message_id : messageId
};

msg.payload.type = 'editMessageReplyMarkup';
msg.payload.content = reply_markup;
msg.payload.options = options;

return [ msg ];

// This is a sample switch to demonstrate the handling of the user input.
if(msg.payload.content === "FOO YES REALLY")
{
    // Hide the keyboard and forget the messageId
    msg.payload.type = 'deleteMessage';
    msg.payload.content = context.global.keyboard.messageId
    context.global.keyboard.messageId = null;

    // You could also send a editMessageReplyMarkup with an empty reply_markup here
    return [ null, msg ];
}
else
{
    var show_alert = false; // you can set this to true to open a dialog with the answer in the client.

    // msg.payload.content contains the callback data from the keyboard.
    // You may change this value here.
    msg.payload.options = show_alert;

    return [ msg, null ];
}

// This is the message id of the initial keyboard that is simply exchanged by a new one.
var messageId = context.global.keyboard.messageId;

// This is a sample of how to send a second inline keyboard with modified buttons
var reply_markup = JSON.stringify({
    "inline_keyboard": [[
                {
                    "text": "Are you really sure?",
                    "callback_data": "FOO YES REALLY"
                },
                {
                    "text": "No",
                    "callback_data": "FOO NO"
                }]
            ]
  });


var options = {
    chat_id : msg.payload.chatId,
    reply_markup : reply_markup,
    message_id : messageId
};

msg.payload.type = 'editMessageText';
msg.payload.content = "Confirmation question";
msg.payload.options = options;

return [ msg ];

The following figure shows the behaviour on a mobile device (e.g. cell phone). The example given above replaces the button description within the node edit inline keyboard message:

Fig. 25: Edit an inline keyboard example screenshot

Implementing an inline_query

Bots can be called from any chat via inline_query when the bot is set to inline mode in botfather via /setinline (see https://core.telegram.org/bots/api#inline-mode).

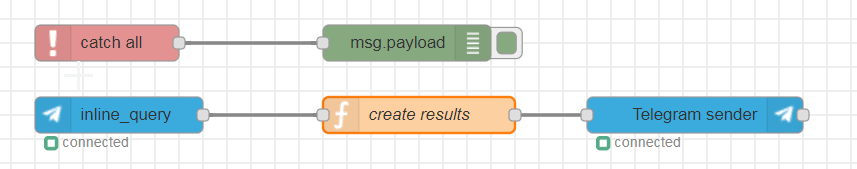

A sample flow is provided in the examples folder and could look like this:

inlinequery flow
Fig. 26: inline_query example flow

The inline_query must be answered by sending a results array. See https://core.telegram.org/bots/api#inlinequeryresult.
The example just returns two simple articles, but almost every kind of content can be returned.

Note that the inline_query can also contain the location of the sender. To enable this call /setinlinegeo in botfather.

// we have to set the results propery with the answer(s)
// see https://core.telegram.org/bots/api#inlinequeryresult
var results = [
    // result 1 is InlineQueryResultArticle
    {
        type : "article",
        id : "1",
        title : "Result 1",

        // InputTextMessageContent see https://core.telegram.org/bots/api#inputmessagecontent
        input_message_content : {
            message_text : "The message 1",
            parse_mode : "Markdown",
            disable_web_page_preview : true
        }
    },

    // result 2 is InlineQueryResultArticle
    {
        type : "article",
        id : "2",
        title : "Result 2",

        // InputTextMessageContent see https://core.telegram.org/bots/api#inputmessagecontent
        input_message_content : {
            message_text : "The message 2",
            parse_mode : "Markdown",
            disable_web_page_preview : false
        }
    }
];

msg.payload.results = results;

return msg;

Receiving a location

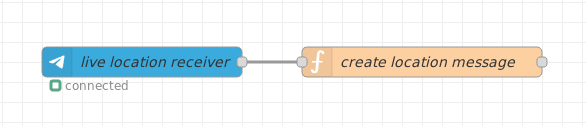

Locations can be send to the chat. The bot can receive the longitude and latitude:

receivinglocation flow
Fig. 27: Receiving a location example

if(msg.payload.location) {
    var lat = msg.payload.location.latitude;
    var lng = msg.payload.location.longitude;
    var user = msg.payload.from.username;

    msg.payload.type = 'message';
    msg.payload.content = user + ' moved to lat=' + lat + ' lon=' + lng;

    return msg;
}
else {
    return null;
}

Sending messages to a specified chat

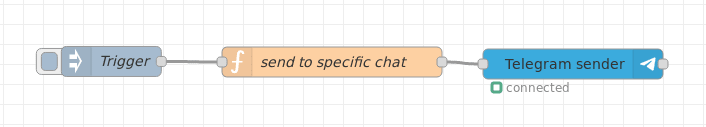

If you have the chatId, you can send any message without the need of having received something before.

sendmessagetochat flow
Fig. 28: Sending messages to a chat example flow

Sending markdown contents in messages is described below.

msg.payload = {chatId : 138708568, type : 'message', content : 'ping'}

return msg;

Sending photos, videos, ...

Additionally to sending text messages you can send almost any file based content like photos and videos. Set the right type and content and you are done. If you want to respond to a received message with a picture you could write:

msg.payload.content = 'foo.jpg';
msg.payload.type = 'photo';

Note: The chatId is already the correct one when you reuse the received msg object from a receiver node.

You can use one of the following types to send your file as content:

• photo
• audio
• video
• video_note
• sticker
• dice
• animation
• voice
• document

Note that some clients convert gif animations to videos. This will lead to problems when passing a received animation object to the sender node as the content is mp4 instead of gif. The content can be downloaded automatically to a local folder by setting the Download Directory property in the receiver node configuration dialog. You can add a caption to photo, audio, document, video, video_note, animation, voice by setting the caption property as follows:

msg.payload.caption = "You must have a look at this!";

The following types require a special content format to be used. See the underlying node api for further details.

• location
• contact
• venue
• mediaGroup

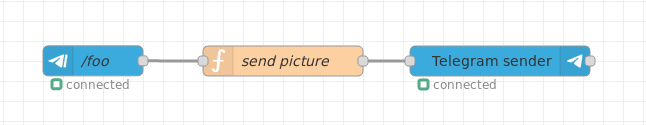

An example flow to send a photo is shown in the following figure:

Fig. 29: Photo sending example flow

msg.payload.content = 'foo.jpeg';
msg.payload.type = 'photo';

/* type can be one of the following
audio
video
sticker
dice
voice
document
*/

return msg;

Instead of passing a file name you can also directly pass the buffer of a photo as msg.payload.content. This is useful whenever you download files or already have the buffer in memory from a previous action. The following example demonstrates how to accomplish this: SendPhotoBuffer

msg.payload.content = buffer;
msg.payload.type = 'photo';

/* type can be one of the following
audio
video
sticker
dice
voice
document
*/

return msg;

Sending a mediaGroup as album

To send several photos as an album you can use the mediaGroup type. For this type of media group you have to set the content to an array of object type InputMediaPhoto. The contents of the msg.payloadobject is shown below (in JSON format).

An example flow sending a media group is shown in the following figure:

sendmediagroup flow
Fig. 30: Sending media group example flow

// sendMediaGroup example: send  between 2 and 10 media.
// Note that type can also be video.
// and the caption property is optional.
// see https://core.telegram.org/bots/api#inputmediaphoto
// see https://core.telegram.org/bots/api#inputmediavideo

msg.payload.type = "mediaGroup";
msg.payload.content = [
    {
        type : "photo",
        media : "/pic/frame_1.jpg",
        caption : "Photo 1"
    },
    {
        type : "photo",
        media : "/pic/frame_2.jpg",
        caption : "Photo 2"
    }
];

return msg;

Sending contacts

Sending a contact is limited to the elements supported by the underlying API to "phone_number" and "first_name". But you can also receive "last_name" if the client sends it.

msg.payload.type = 'contact';
msg.payload.content : {  phone_number: "+49 110", first_name: "Polizei" };

An example flow sending a contact is shown in the following figure:

sendcontacttochat flow
Fig. 31: Sending contact example flow

msg.payload =
{
    chatId : 12345,
    type : "contact",
    content :
    {
        phone_number: "+49 30 987654321",
        first_name: "Max",
        last_name: "Mustermann"
    },
    options :
    {
        disable_notification : true
    }
}

return msg;

The display within the telegram app of a sent contact may look like this:

Fig. 32: Sending contact example screenshot

Sending chat actions

When the bot needs some time for further processing but you want to give a hint to the user what is going on, then you can send a chat action which will appear at the top of the channel of the receiver. You can either use "sction" or "sendChatAction" as type:

msg.payload.type = 'action';
msg.payload.content = "typing";

The content can be one of the following

• typing for text messages
• upload_photo for photos
• record_video or upload_video for videos
• record_audio or upload_audio for audio files
• upload_document for general files
• find_location for location data
• record_video_note or upload_video_note for video notes

The following example illustrate how to send for example "typing...". Of course a real bot would send the real data after finishing the processing, but this is not part of the example.

An example flow sending a chat action is shown in the following figure:

sendchataction flow
Fig. 33: Sending chat actions example flow

// demonstrates sending a chat action (see https://core.telegram.org/bots/api#sendchataction)
var type = msg.payload.type;
msg.payload.type = "action";

switch(type){
    case "message":
        msg.payload.content = "typing";
        break;

    case "photo":
        msg.payload.content = "upload_photo";
        break;

    case "video":
        msg.payload.content = "up</details>
