Angular Json Editor

This is a wrapper over what is below, for angular 16 & 17, and it's used for private purposes only. If you want to use it, please be aware that will not be any other PR and changes for this library, only vulnerabilities will be fixed.

For a stable version please use the repo below.

About this repository

This is a fork of mariohmol's ang-jsoneditor with support for Angular 11, 12, 13 and 14. This repository will probably become stale, when the original will be actively maintained again.

About the project

Angular wrapper for jsoneditor). A library with that you can view and edit json content interactively.

Installation

1. Install "jsoneditor"

The wrapped library is not packaged in this library.
You have to install it via npm i jsoneditor@9.7

2. Install this wrapper library

To install this library with npm, run one of the command below:

WARNING: Although versions are marked as stable, there can be still bugs because this project isn't heavily integrated in a lot of production projects

Usage

Minimal Example

First import Module in module.ts:

// For Angular 11 + 12
import { NgJsonEditorModule } from '@maaxgr/ang-jsoneditor'
// Starting Angular 13
import { AngJsoneditorModule } from '@maaxgr/ang-jsoneditor'

@NgModule({
  declarations: [
    AppComponent
  ],
  imports: [
    ....,
    // For Angular 11 + 12
    NgJsonEditorModule,
    // Starting Angular 13
    AngJsoneditorModule,
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

Then setup your component models as below:

import {Component} from '@angular/core';
import {JsonEditorOptions} from "@maaxgr/ang-jsoneditor";

@Component({
  selector: 'app-root',
  template: '' +
    '<div>{{ visibleData | json }}</div>'
})
export class AppComponent {

  public editorOptions: JsonEditorOptions;
  public initialData: any;
  public visibleData: any;

  constructor() {
    this.editorOptions = new JsonEditorOptions()
    this.editorOptions.modes = ['code', 'text', 'tree', 'view'];

    this.initialData = {"products":[{"name":"car","product":[{"name":"honda","model":[{"id":"civic","name":"civic"},{"id":"accord","name":"accord"},{"id":"crv","name":"crv"},{"id":"pilot","name":"pilot"},{"id":"odyssey","name":"odyssey"}]}]}]}
    this.visibleData = this.initialData;
  }

  showJson(d: Event) {
    this.visibleData = d;
  }

}

Add Style to style.scss:

@import "~jsoneditor/dist/jsoneditor.min.css";

Access Component

For deeper configuration, add this to component.ts:

@ViewChild(JsonEditorComponent, { static: false }) editor!: JsonEditorComponent;

Forms

Build it integrated with ReactiveForms:

this.form = this.fb.group({
  myinput: [this.data]
});

<form>


</form>

Extra Features

Besides all the configuration options from the original jsoneditor, Angular Json Editor supports one additional option:

=> expandAll: to automatically expand all nodes upon json loaded with the data input.

Troubleshoot

If you have issue with the height of the component, you can try one of those solutions:

When you import CSS:

@import "~jsoneditor/dist/jsoneditor.min.css";
textarea.jsoneditor-text{min-height:350px;}

Or Customizing the CSS:

:host ::ng-deep json-editor,
:host ::ng-deep json-editor .jsoneditor,
:host ::ng-deep json-editor > div,
:host ::ng-deep json-editor jsoneditor-outer {
  height: 500px;
}

Or as a inner style in component:

For code view you can change the height using this example:

.ace_editor.ace-jsoneditor {
  min-height: 500px;
}

Use debug mode to see in your console the data and options passed to jsoneditor. Copy this and paste in your issue when reporting bugs.

JSONOptions missing params

If you find youself trying to use an custom option that is not mapped here, you can do:

let editorOptions: JsonEditorOptions = new JsonEditorOptions(); (this.editorOptions).templates = [{menu options objects as in json editor documentation}]

See the issue

Internet Explorer

If you want to support IE, please follow this guide:

• https://github.com/mariohmol/ang-jsoneditor/issues/44#issuecomment-508650610

Multiple editors

To use multiple jsoneditors in your view you cannot use the same editor options.

You should have something like:

<div class="w-100-p p-24">

</div>

makeOptions = () => {
  return new JsonEditorOptions();
}

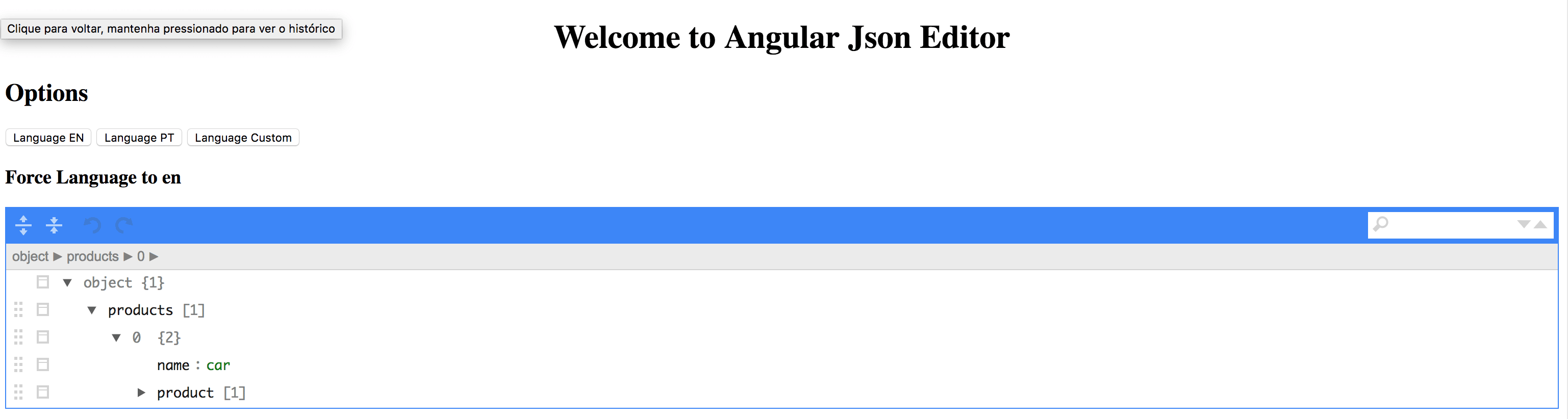

Demo

Demo component files are included in Git Project under projects/demo.
An explanation how to start the demo is in the Local Development-Guide

Collaborate

See Local Development

License

MIT
