Apus - React Chart Library

A powerful and customizable chart library for React applications, built with D3.js and TypeScript.

📚 View Documentation | 🚀 Live Demo

Features

• 🎯 Built with React 18 and TypeScript
• 📊 Powered by D3.js for powerful data visualization
• 🎨 Customizable and responsive charts
• 📦 Lightweight and easy to integrate
• 🔍 Type-safe with TypeScript support
• 🎨 Modern UI components with Tailwind CSS

Screenshots

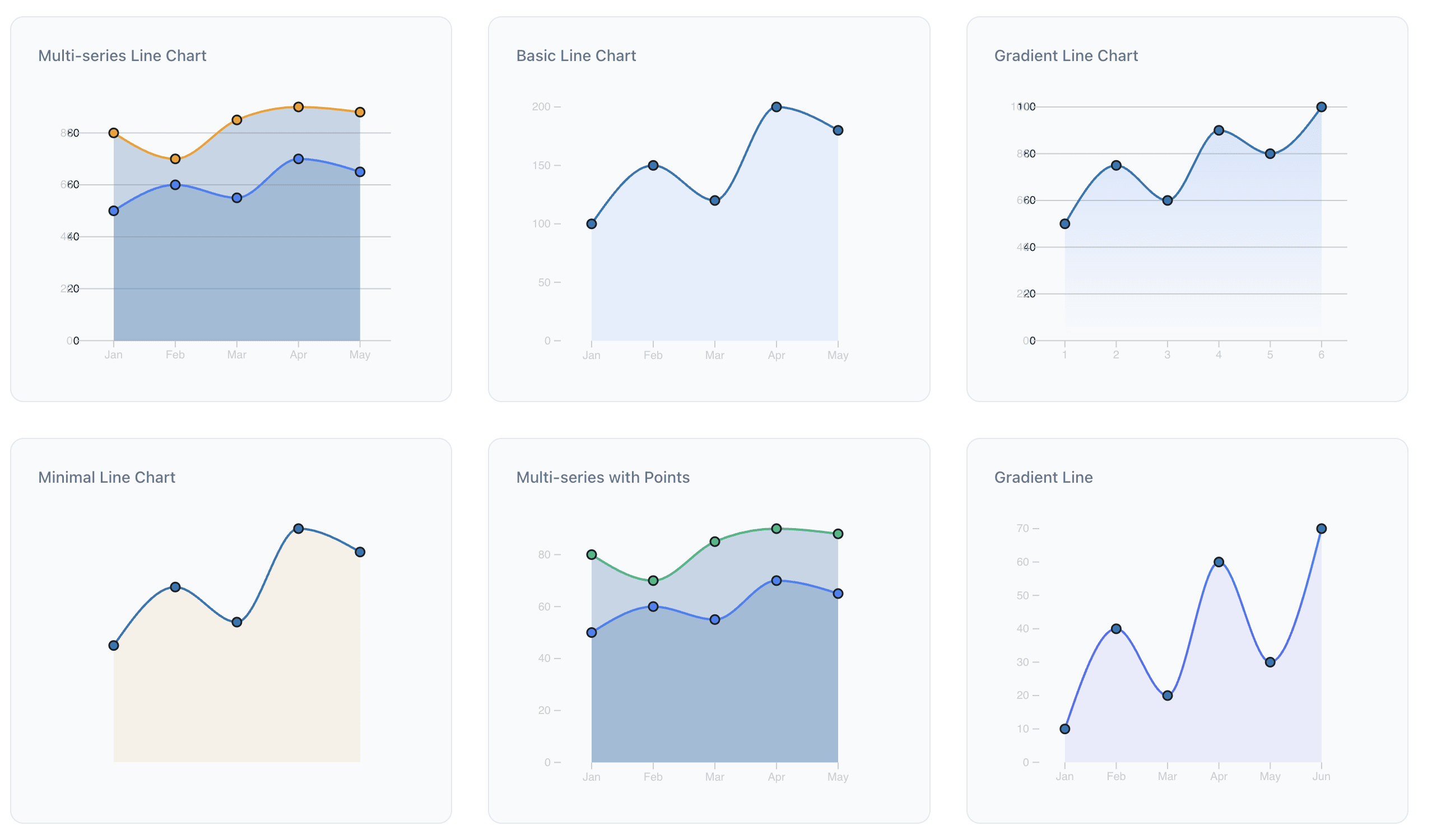

Interactive Line Chart with Multiple Datasets

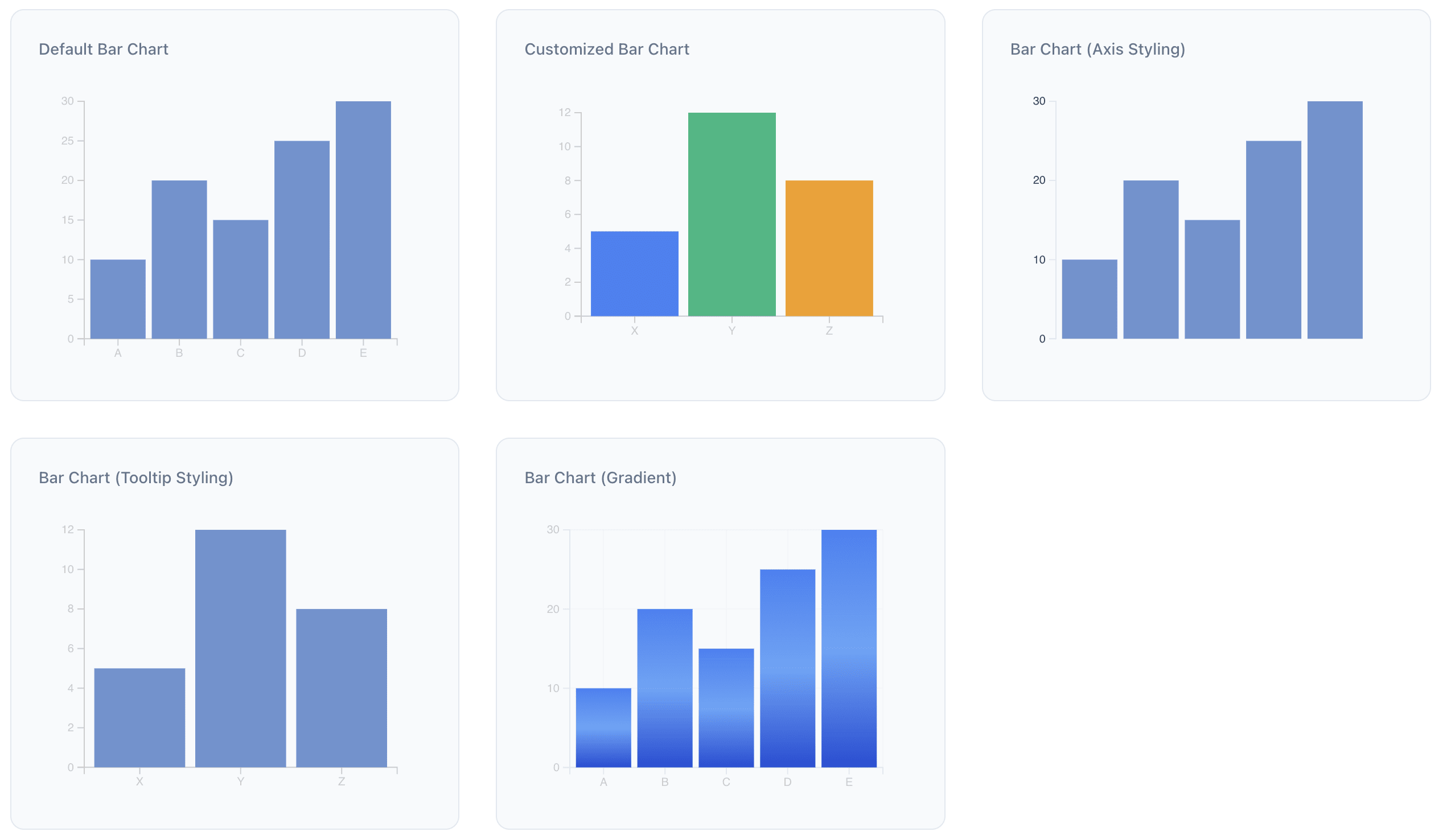

Customizable Bar Chart with Tooltips

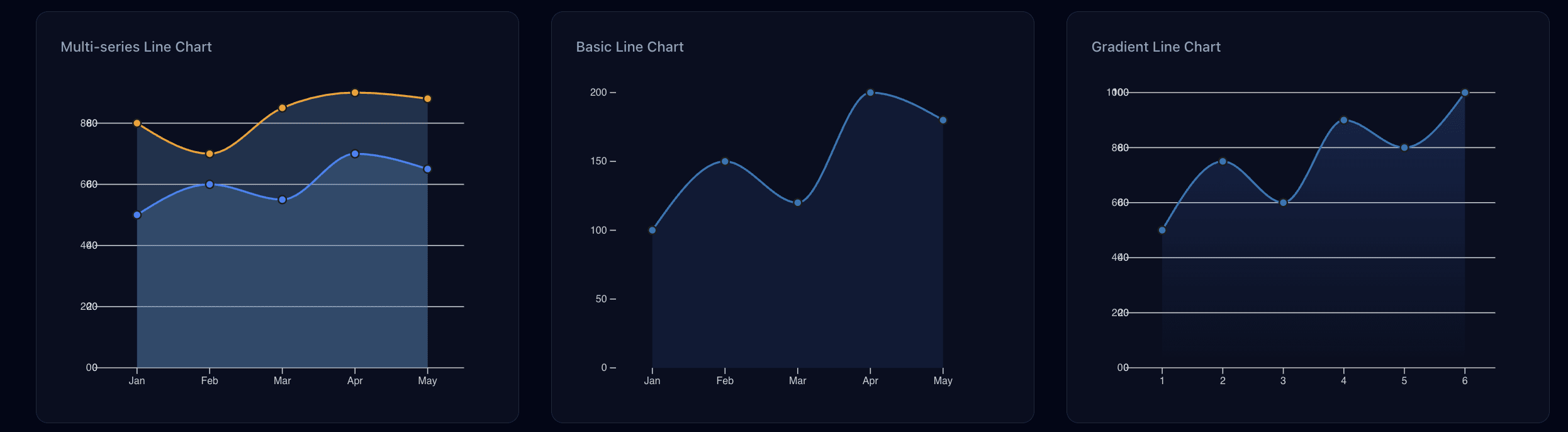

Advanced Scatter Plot with Regression Line

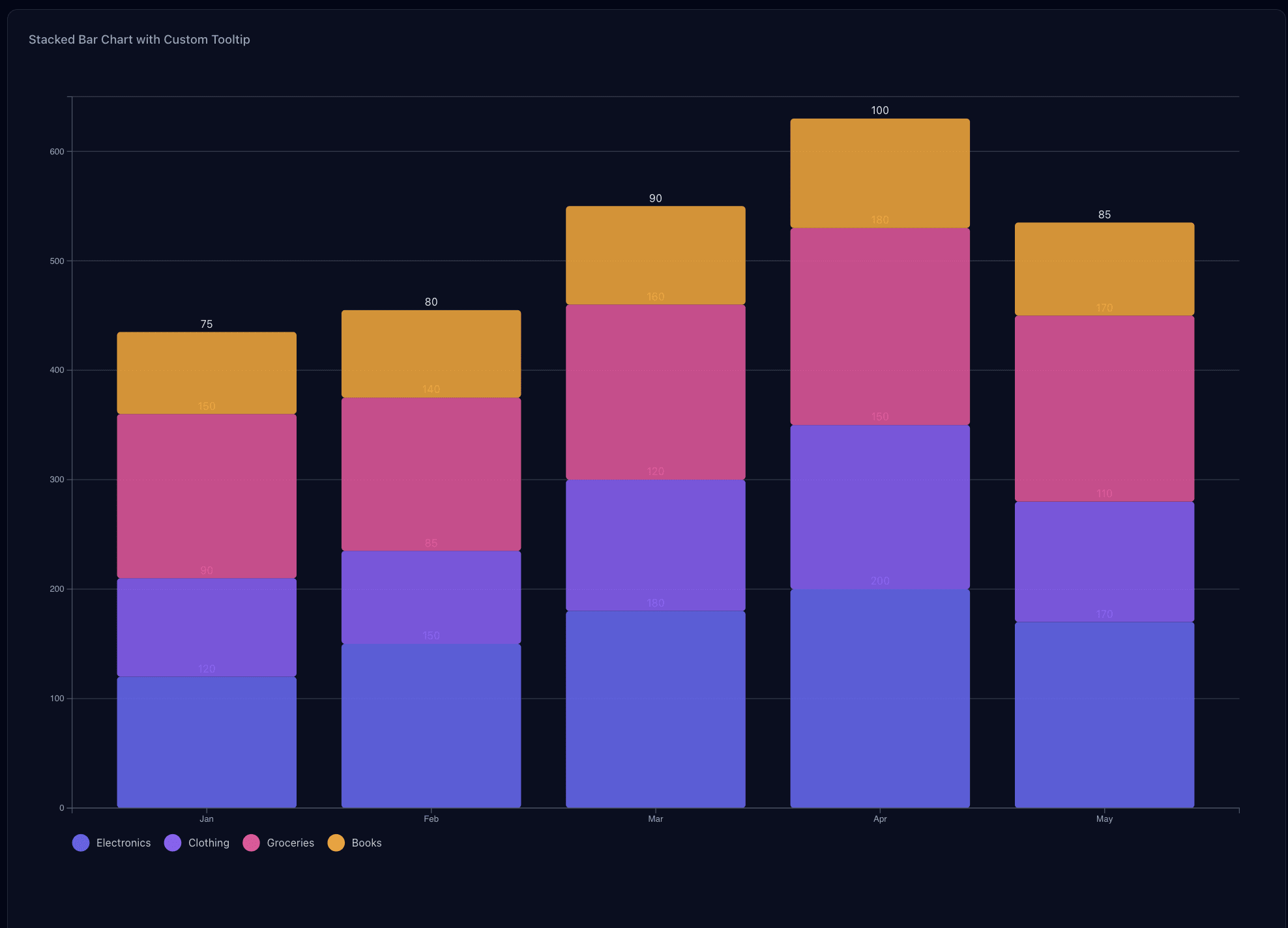

Stacked Bar Chart

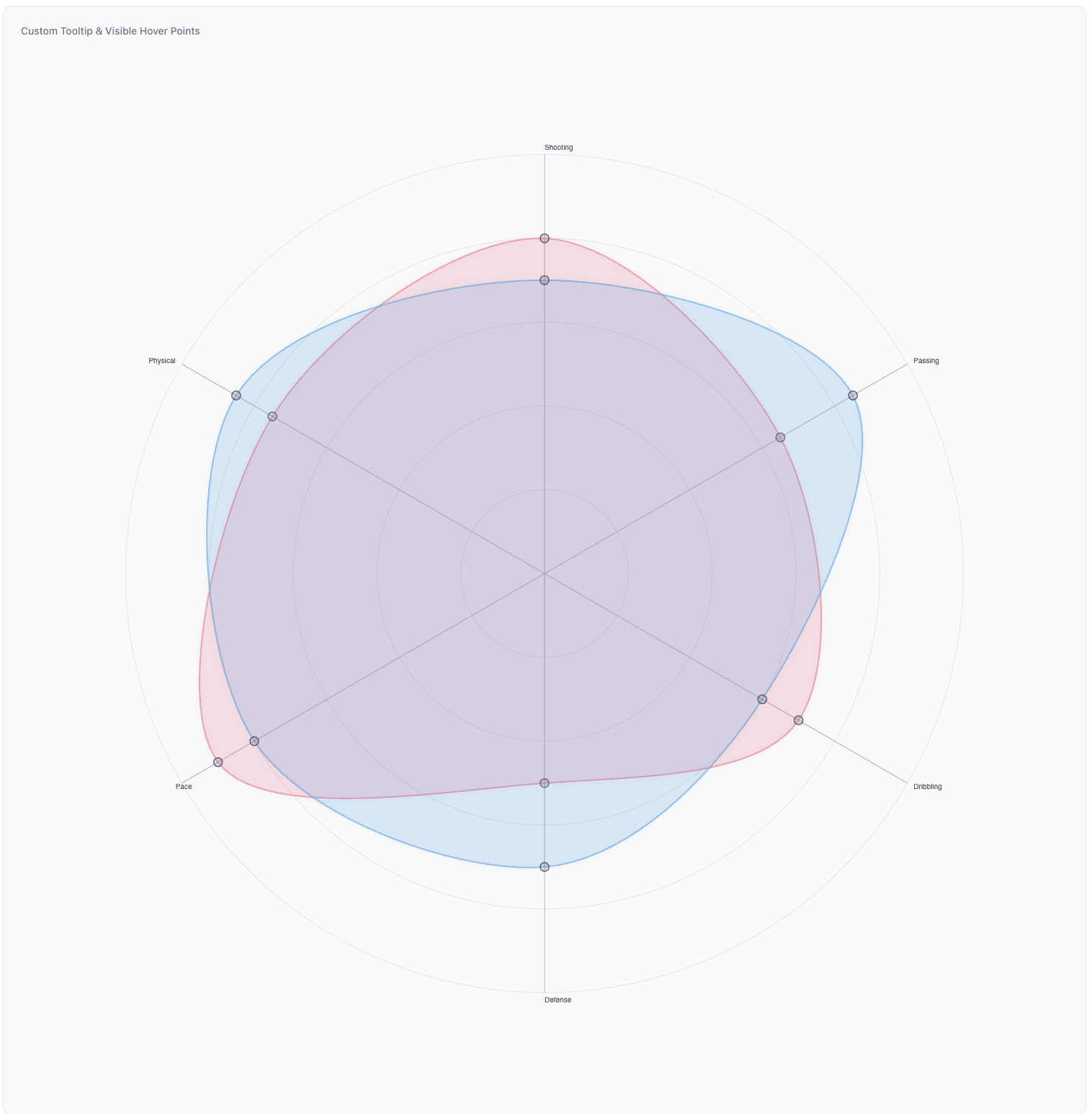

Radar Chart

Installation

# Using npm
npm install apus

# Using yarn
yarn add apus

# Using pnpm
pnpm add apus

Peer Dependencies

This library requires the following peer dependencies:

{
  "d3": "^7.0.0",
  "react": "^18.0.0",
  "react-dom": "^18.0.0"
}

Available Chart Types

1. Line Chart

A versatile chart for displaying trends over time or continuous data. Supports multiple series, area fills, and customization options.

View LineChart Props and Details

import { LineChart } from 'apus';

const lineChartData = [
  {
    name: 'Series 1',
    values: [
      { label: 'Jan', value: 30 },
      { label: 'Feb', value: 40 },
      { label: 'Mar', value: 35 },
    ],
  },
  {
    name: 'Series 2',
    values: [
      { label: 'Jan', value: 50 },
      { label: 'Feb', value: 60 },
      { label: 'Mar', value: 55 },
    ],
  },
];

2. Bar Chart

Ideal for comparing discrete categories. Supports single or multiple colors and responsiveness.

View BarChart Props and Details

import { BarChart } from 'apus';

const barChartData = [
  { label: 'Category A', value: 10 },
  { label: 'Category B', value: 20 },
  { label: 'Category C', value: 15 },
];

3. Stacked Bar Chart

Displays data as a series of stacked bars, suitable for showing parts of a whole or comparing cumulative totals across different categories.

View StackedBarChart Props and Details

import { StackedBarChart } from 'apus';

const salesData = [
  { month: 'Jan', apples: 10, oranges: 20, bananas: 15 },
  { month: 'Feb', apples: 12, oranges: 18, bananas: 22 },
  { month: 'Mar', apples: 8, oranges: 25, bananas: 10 },
];

const fruitKeys = ['apples', 'oranges', 'bananas'];

Component Props

For detailed props of each component, please refer to their individual README files linked above.

Advanced Usage Examples

1. Custom Styling with Gradients (Line Chart)

2. Custom Styling with Multiple Colors (Bar Chart)

### 3. Charts with Legends

#### Line Chart with Legend

```tsx
// Multi-series line chart with legend on the right
const multiSeriesData = [
  {
    name: 'Series A',
    values: [
      { label: 'Jan', value: 30 },
      { label: 'Feb', value: 45 },
      { label: 'Mar', value: 40 },
      { label: 'Apr', value: 55 },
      { label: 'May', value: 50 },
    ],
  },
  {
    name: 'Series B',
    values: [
      { label: 'Jan', value: 60 },
      { label: 'Feb', value: 50 },
      { label: 'Mar', value: 65 },
      { label: 'Apr', value: 70 },
      { label: 'May', value: 68 },
    ],
  },
];

Bar Chart with Legend

// Bar chart with custom legend labels at the bottom
const barData = [
  { label: 'A', value: 10 },
  { label: 'B', value: 20 },
  { label: 'C', value: 15 },
  { label: 'D', value: 25 },
  { label: 'E', value: 30 },
];

Development

1. Clone the repository:

git clone https://github.com/harshattray/apus.git
cd apus

2. Install dependencies:

npm install

3. Start the development server:

npm run dev

4. Build the library:

npm run build

Contributing

Contributions are welcome! Please feel free to submit a Pull Request. For major changes, please open an issue first to discuss what you would like to change.

Make sure to update tests as appropriate.

License

MIT

Support

If you encounter any issues or have questions, please open an issue on GitHub.

Author

• GitHub: @harshattray
• Medium: @Harshattray
