Package Introduction

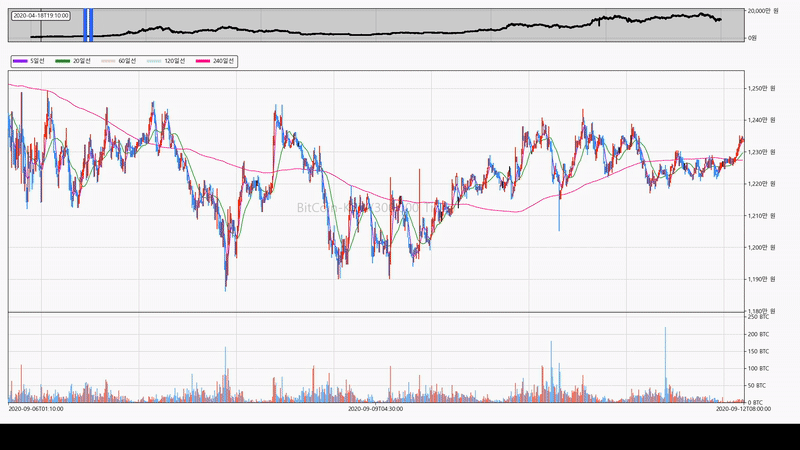

Sample Charts with Over 40,000 Stock Price Data Points, with Intel i5 4690

seolpyo-mplchart is a Python package built on top of matplotlib.

While libraries like finplot and plotly are commonly used to draw candlestick charts in Python, I created this package because none of the existing tools fully met my needs.

Key Features

• Provides three types of Chart classes for flexible charting.

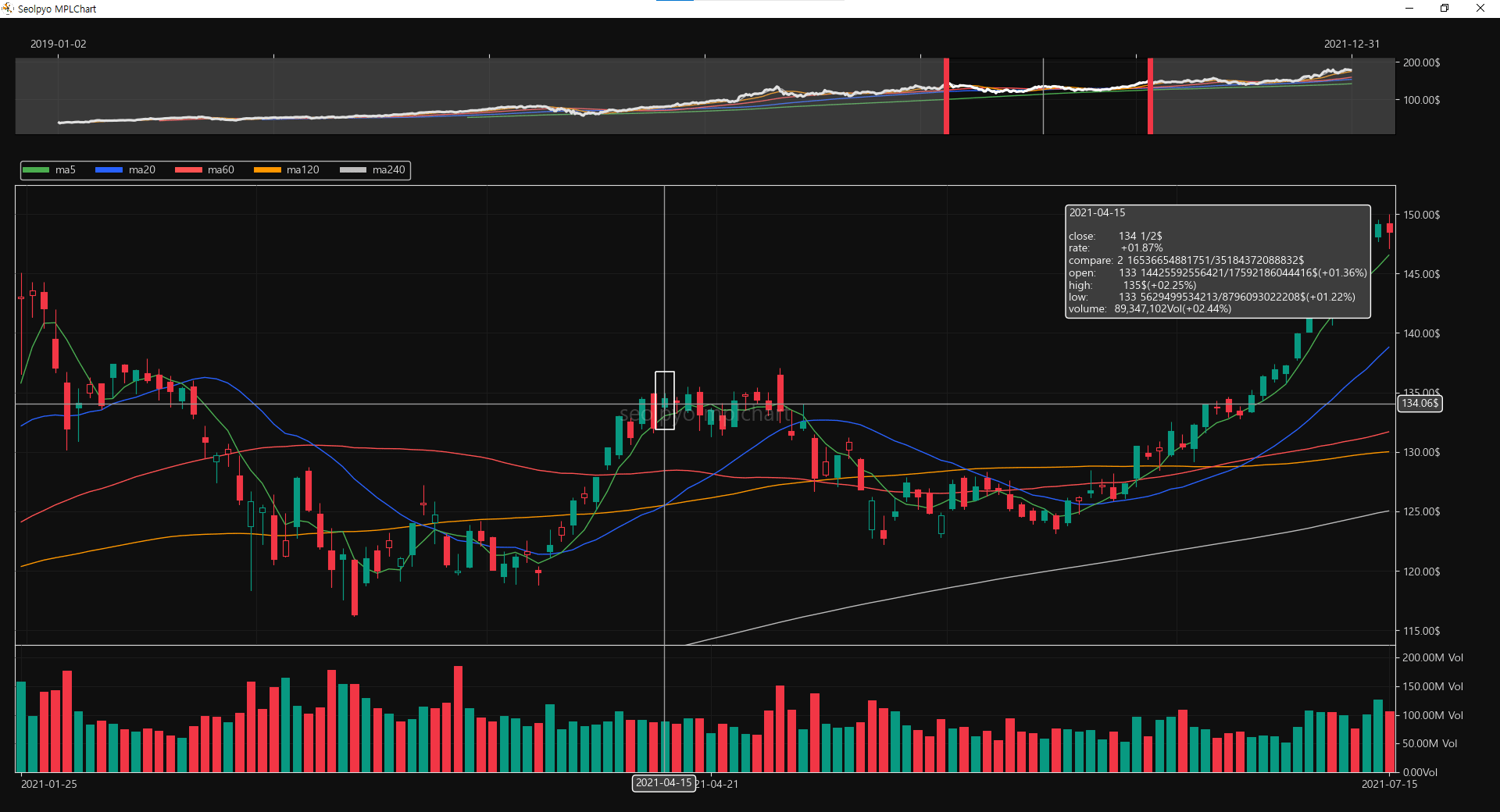

• Includes an overview slider (SliderChart) that highlights the visible range, allowing users to select or move the viewing window interactively.
• Integrates smoothly with various GUI frameworks, including tkinter, ensuring responsive performance.
• Displays stock price information as text (CursorChart, SliderChart). Simply hover your mouse over a candlestick or volume bar to view the corresponding data.

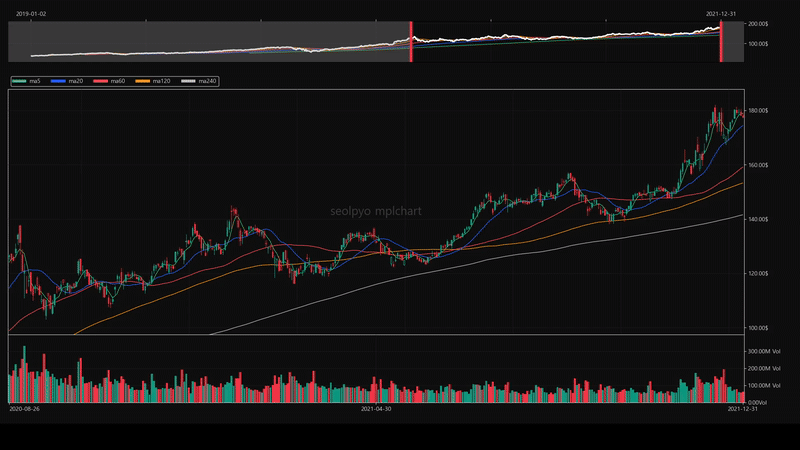

• Built-in support for toggling moving average lines on and off.

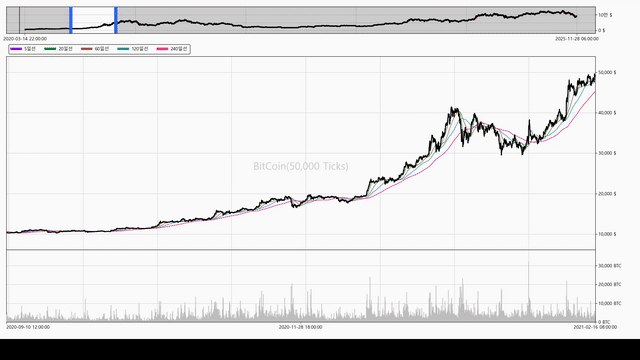

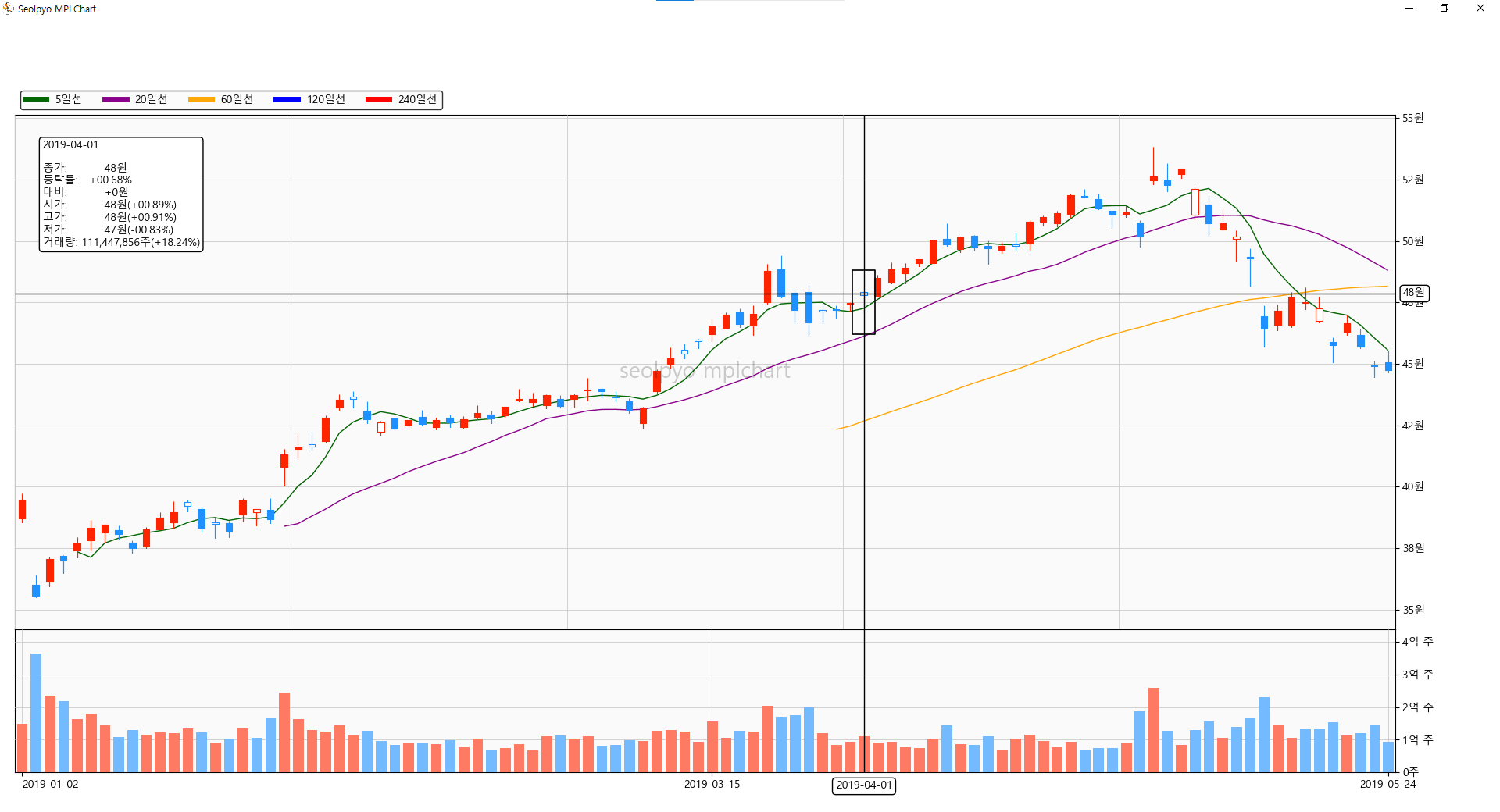

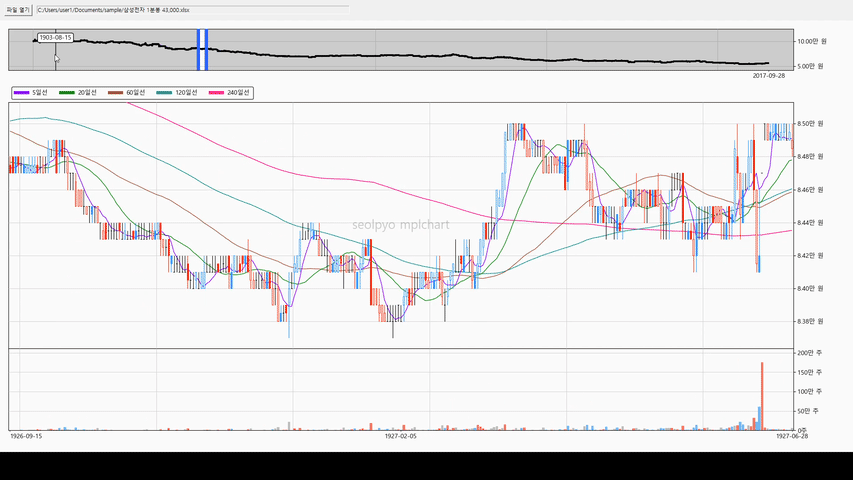

You can check out a sample of drawing candlestick charts integrated with tkinter at the following link:

View tkinter sample code

✅ Verified to work with 32-bit Python 3.11, pandas 2.0.0, and matplotlib 3.7.0.

Installation

> pip install seolpyo-mplchart

Quick Start

OnlyChart

It is a chart that simply renders without any interaction.

import seolpyo_mplchart as mc

chart = mc.OnlyChart()
df: pandas.DataFrame = {stock price data frame}
chart.set_data(df)
mc.show()

CursorChart

This chart is an enhanced version of OnlyChart with mouse interaction capabilities. It displays the date information corresponding to the mouse cursor position at the bottom of the chart, and price or volume data on the right side. When the mouse cursor hovers over a candlestick or volume bar, the relevant information is shown as text.

import seolpyo_mplchart as mc

chart = mc.CursorChart()
df: pandas.DataFrame = {stock price data frame}
chart.set_data(df)
mc.show()

SliderChart

This chart is an extended version of CursorChart with an added overview slider. The slider allows users to select or move the viewing range, and users can also click and drag within the chart area to shift the visible region.

import seolpyo_mplchart as mc

chart = mc.SliderChart()
df: pandas.DataFrame = {stock price data frame}
chart.set_data(df)
mc.show()

Chart Description

Chart Class Variables

CONFIG

Chart Configuration File If not provided, the predefined CONFIG* settings will be used.

* CONFIG: mc.DEFAULTCONFIG(OnlyChart, CursorChart) 또는 mc.SLIDERCONFIG(SliderChart)

watermark

Watermark text displayed at the center of the chart. If if not self.watermark evaluates to true, the watermark will not be rendered.

candle_on_ma

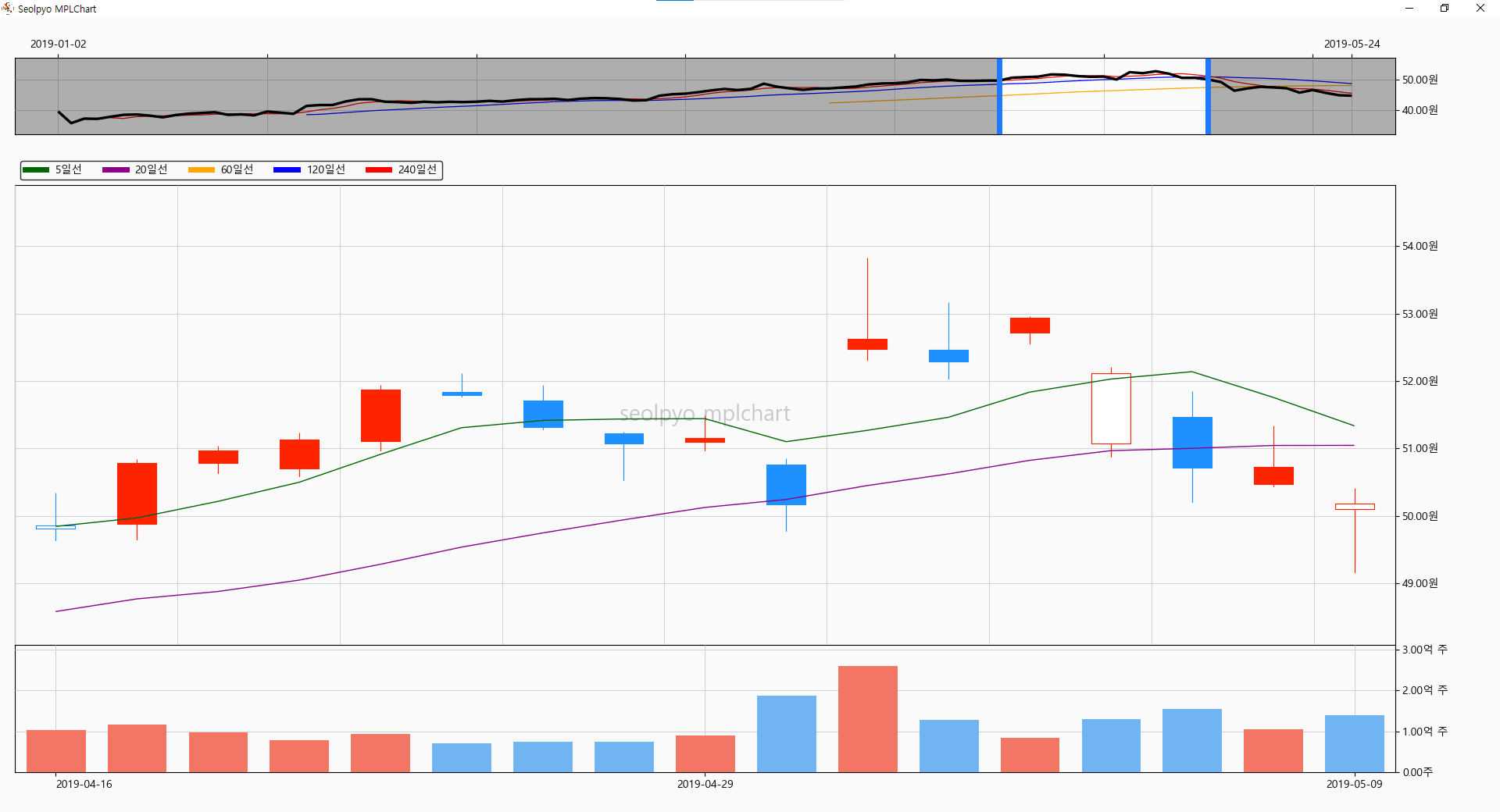

If true, candlesticks are drawn above the moving average line. If false, candlesticks are drawn below the moving average line, as shown in the following image.

limit_candle

If the number of candlesticks to be drawn on the screen is less than or equal to this value, full candlesticks are rendered. If it exceeds the value, only wicks are drawn.

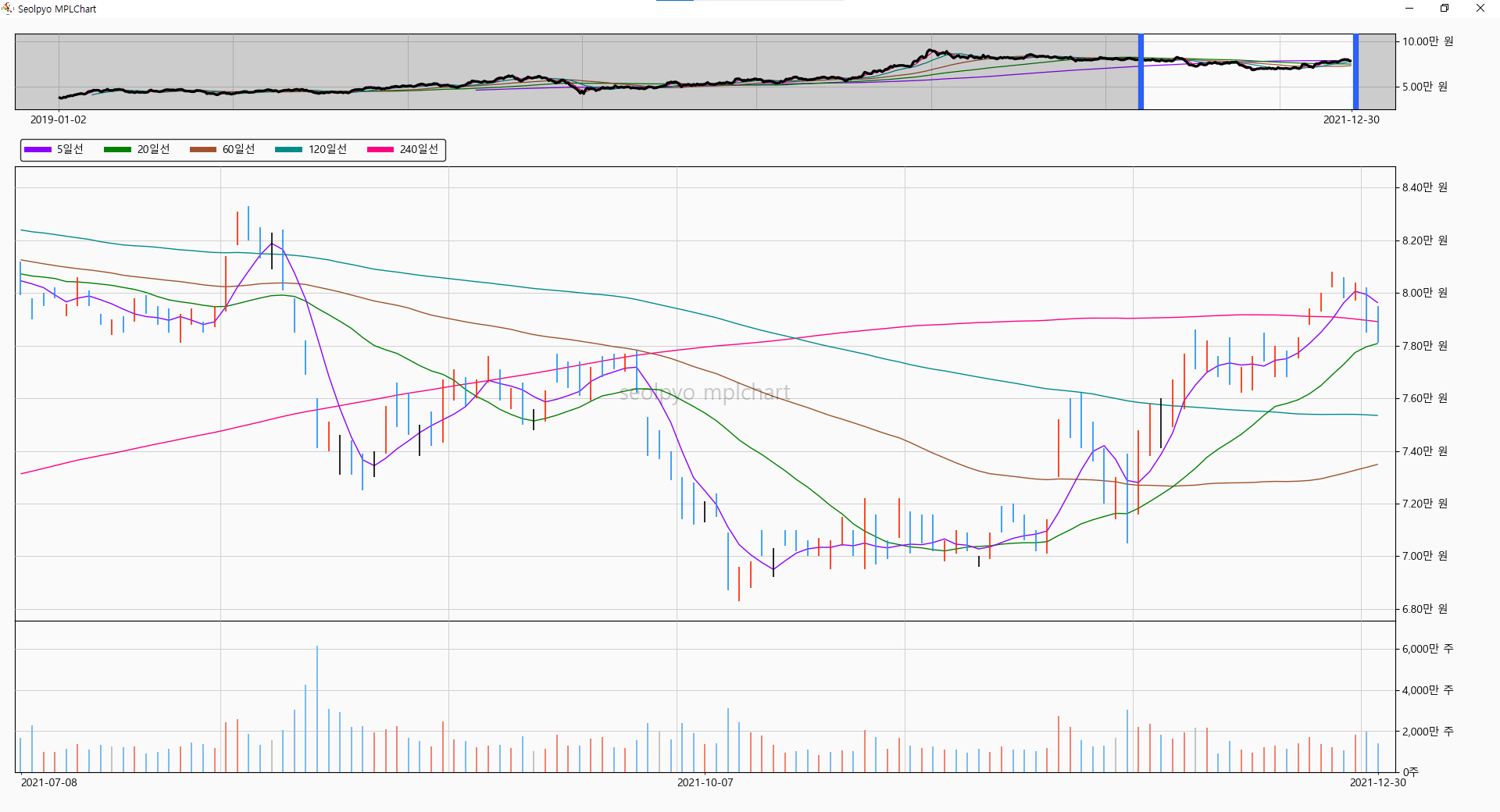

limit_wick

If the number of candlesticks to be drawn on the screen is less than or equal to this value, only wicks are rendered. If it exceeds the value, a line chart is drawn instead.

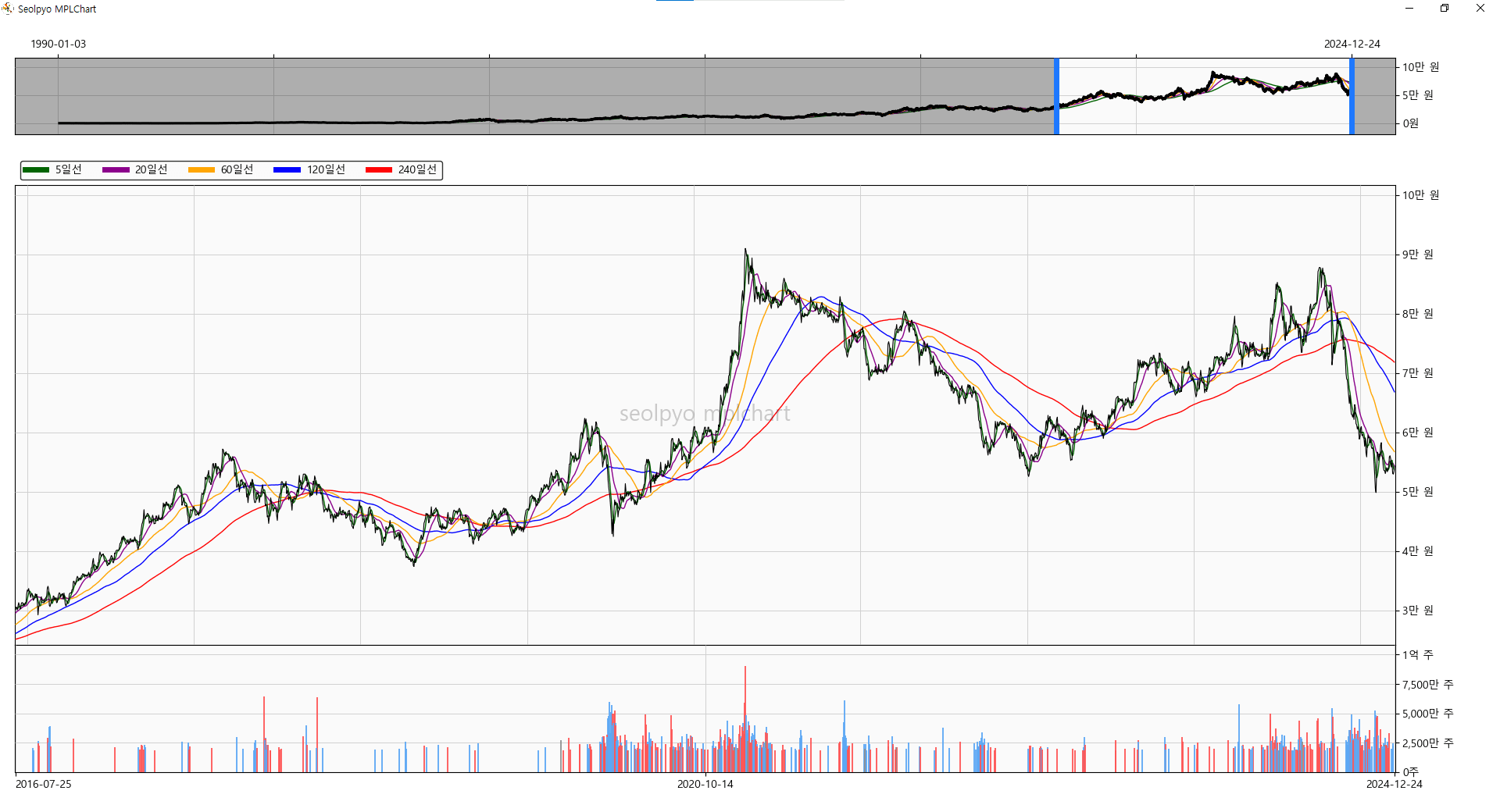

limit_volume

If the number of candlesticks drawn on the screen is less than or equal to self.limit_wick, the entire volume data is rendered. If it exceeds that value, only a subset of volume data is drawn — specifically, the top limit_volume entries sorted in descending order of volume. If you experience buffering when moving across a wide range, lowering this value may help improve performance. This only applies while the chart is being moved in the Slider chart.

limit_ma

If the number of candlesticks drawn on the screen is less than or equal to this value, the moving average line is rendered. If you experience buffering when navigating across a wide range, lowering this value may help improve performance. This only applies while the chart is being moved in the Slider chart.

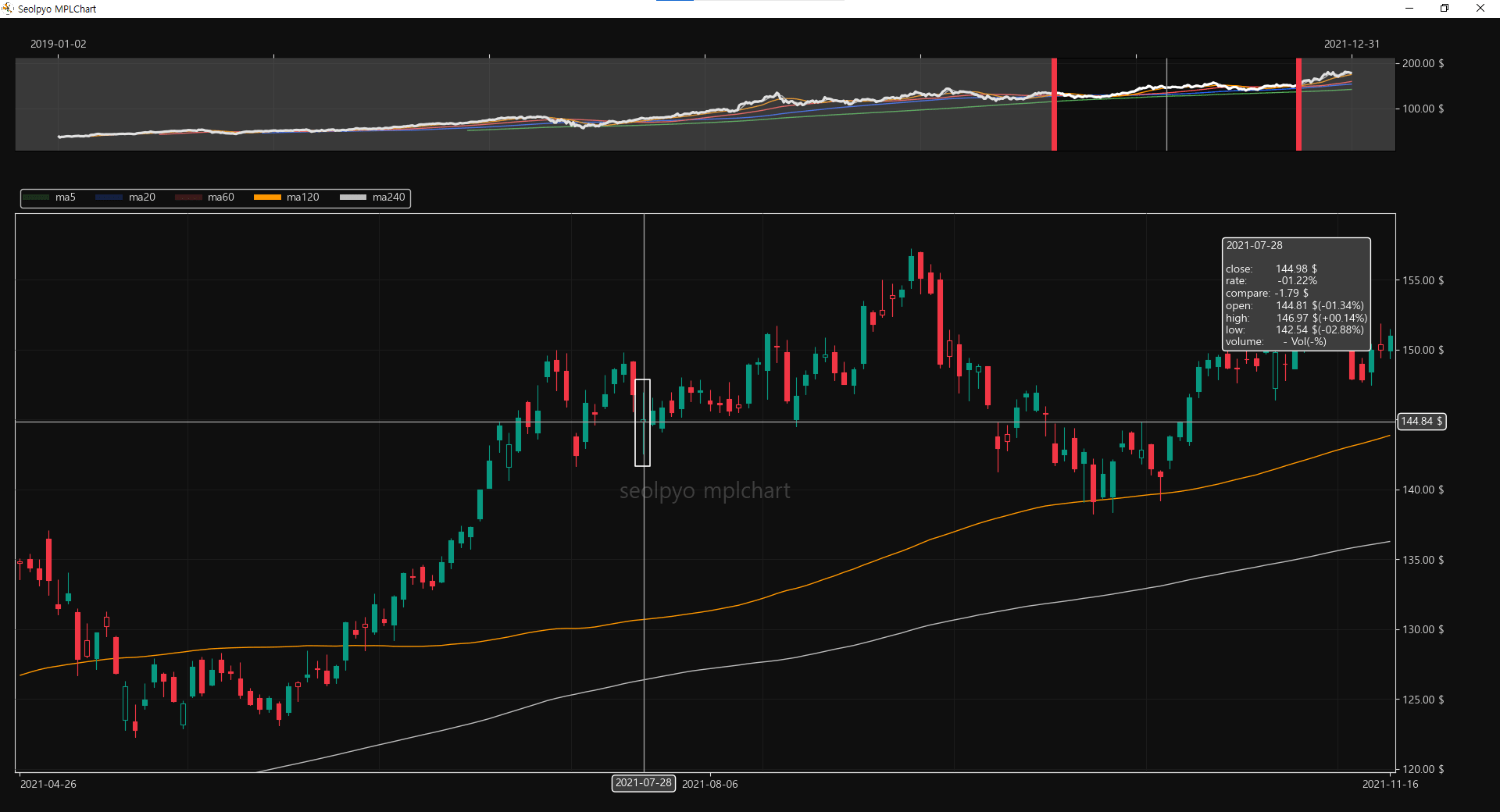

key_date, key_open, key_high, key_low, key_close, key_volume

Keys for each column used in the provided data If if not self.key_volume evaluates to true at the time of executing Chart.set_data(df), the volume chart will not be rendered.

import seolpyo_mplchart as mc

df: pandas.DataFrame = {stock price data frame}

c = mc.SliderChart()
c.key_date= '시간'
c.key_open = '시가'
c.key_high = '고가'
c.key_low = '저가'
c.key_close = '종가'
# c.key_volume = '거래량'
c.key_volume = None
c.set_data(df)

mc.show() # same as matplotlib.pyplot.show()


### OR ###


import json

import seolpyo_mplchart as mc
import pandas as pd

file = {stock price data path}
with open(file, 'r', encoding='utf-8') as txt:
    data = json.load(txt)
df = pd.DataFrame(data)

class Chart(mc.SliderChart):
  key_date = '시간'
  key_open, key_high, key_low, key_close = ('시가', '고가', '저가', '종가')
  # key_volume = '거래량'
  key_volume = None

c = Chart()'
c.set_data(df)

mc.show() # same as matplotlib.pyplot.show()

fraction

If true, decimal values are displayed as fractions.

slider_top

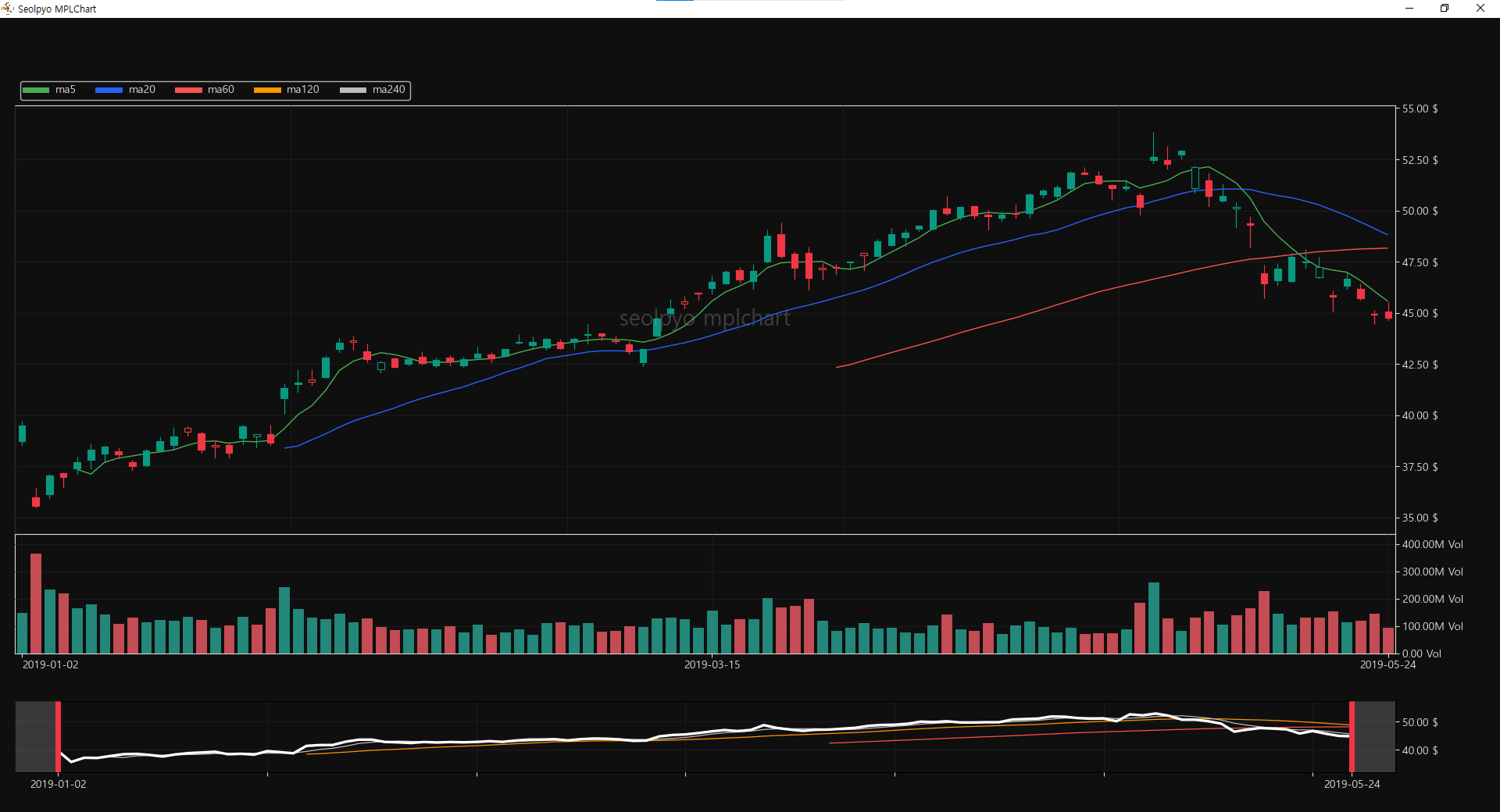

If true, the slider is positioned above the chart.

min_distance

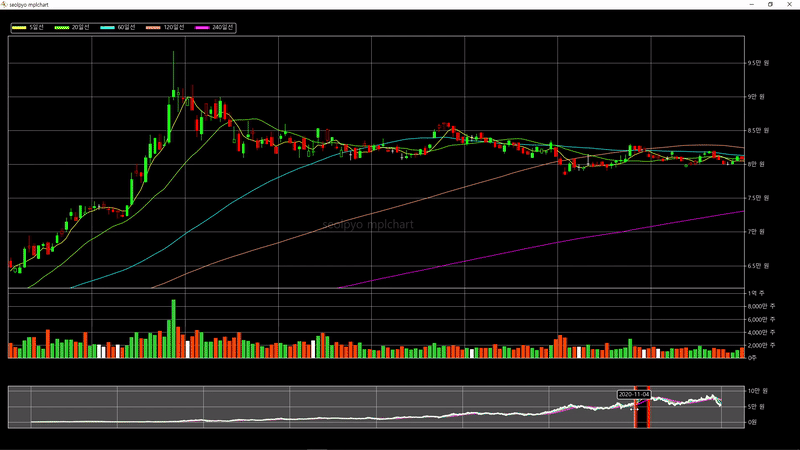

Minimum number of candlesticks required when selecting a slider range If the selected range contains fewer candlesticks than this value, the previous range will be retained.

in_chart

Determines whether the mouse cursor is located within the price chart or volume chart area.

in_slider

Determines whether the mouse cursor is located within the slider area.

in_price_chart

Determines whether the mouse cursor is located within the price chart area.

in_volume_chart

Determines whether the mouse cursor is located within the volume chart area.

Chart class method

Chart.__init__(config=DEFAULTCONFIG or SLIDERCONFIG)

Creates a chart object.

Chart.set_data(df, change_xlim=True)

Passes stock price data to the chart object. The chart object generates chart data based on the received input. When retrieving data from a DataFrame, the predefined keys — Chart.key_date, Chart.key_open, Chart.key_high, Chart.key_low, Chart.key_close, and Chart.key_volume — are used. Therefore, these keys should be properly set before calling set_data. if change_lim is True, it retrieves the values from Chart.get_default_lim() and updates the xlim accordingly.

Chart.get_default_xlim()

It retrieves the xlim values set when Chart.set_data() is called.

Chart.refresh()

Refreshes the chart. During the refresh, any changes made to self.CONFIG are applied.

Chart.add_artists()

Function that adds the Artists used in the chart. Called during initialization (init).

Chart.draw_chart()

Function that draws the basic elements of the chart. It is called when the on_draw event occurs, and also during chart movement.

Chart.draw_artists()

Function that draws the artists on the chart. It is called when the on_draw event occurs, but not during chart movement.

Chart.set_artists()

Function that applies the settings of chart Artists. Called during refresh.

Chart.set_collections()

Function that applies the settings of candlestick and volume chart Artists. Called during refresh or when the display area changes.

Chart.add_candle_color_column(), Chart.add_volume_color_column()

This method determines the colors of candlesticks and volume bars drawn on the chart. It adds the following columns to self.df:

• ['facecolor', 'edgecolor'] for candlesticks
• ['facecolor_volume', 'edgecolor_volume'] for volume bars By modifying the values in these columns, you can customize the colors as desired.

Candlestick Colors

• Open < Close, Previous Close < Close → self.CONFIG.CANDLE.FACECOLOR.bull_rise, self.CONFIG.CANDLE.EDGECOLOR.bull_rise
• Open < Close, Previous Close > Close → self.CONFIG.CANDLE.FACECOLOR.bull_fall, self.CONFIG.CANDLE.EDGECOLOR.bull_fall
• Close < Open, Close < Previous Close → self.CONFIG.CANDLE.FACECOLOR.bear_fall, self.CONFIG.CANDLE.EDGECOLOR.bear_fall
• Close < Open, Close > Previous Close → self.CONFIG.CANDLE.FACECOLOR.bear_rise, self.CONFIG.CANDLE.EDGECOLOR.bear_rise
• Open == Close → self.CONFIG.CANDLE.EDGECOLOR.doji

Volume Bar Colors

• Previous Close < Current Close → self.CONFIG.VOLUME.FACECOLOR.rise, self.CONFIG.VOLUME.EDGECOLOR.rise
• Previous Close > Current Close → self.CONFIG.VOLUME.FACECOLOR.fall, self.CONFIG.VOLUME.EDGECOLOR.fall
• Previous Close == Current Close → self.CONFIG.VOLUME.FACECOLOR.doji, self.CONFIG.VOLUME.EDGECOLOR.doji

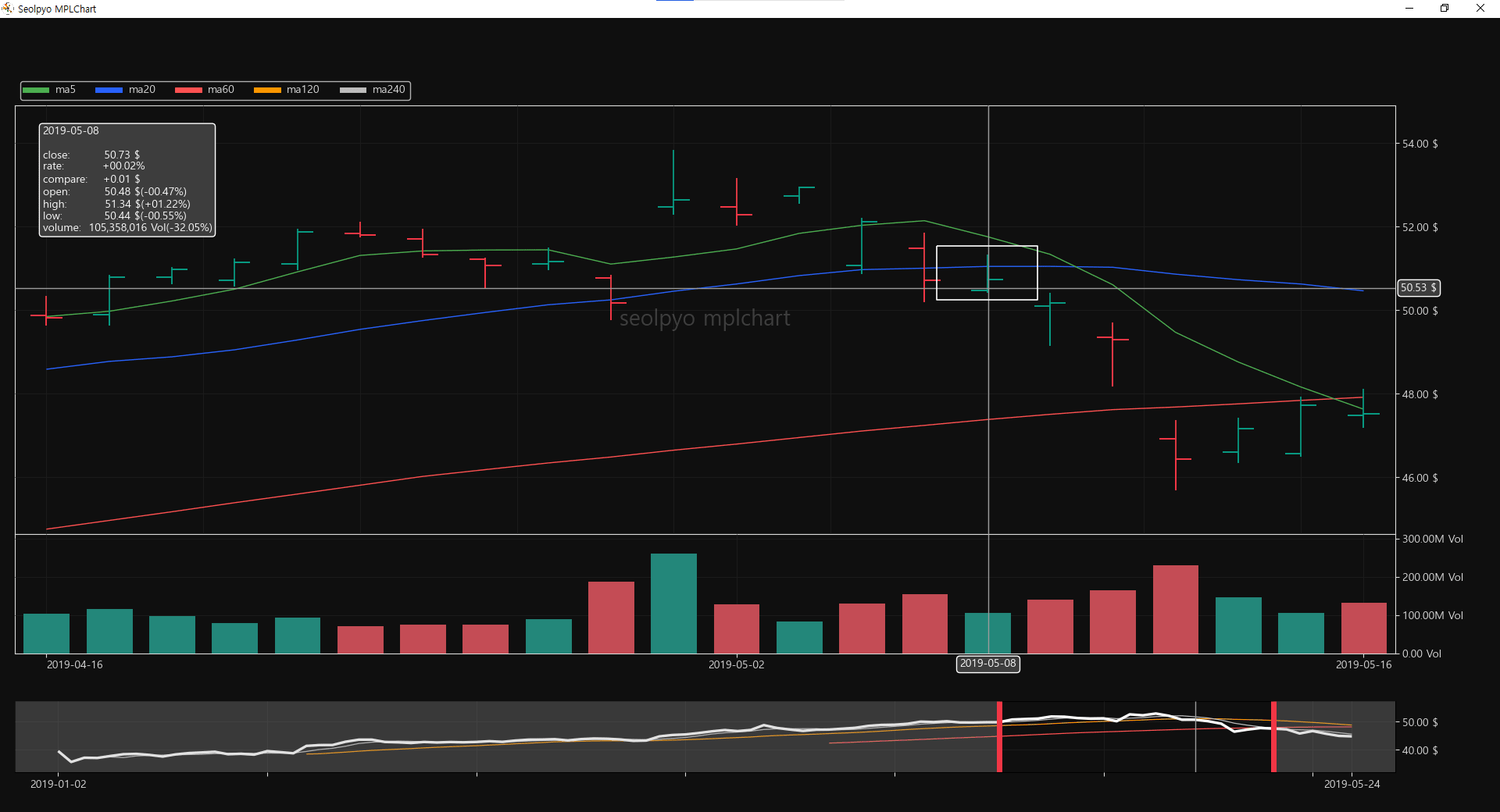

Chart.get_cnadle_segment(x, left, right, top, bottom, is_up, high, low)

This method is provided to modify the appearance of candlesticks drawn on the chart.

import pandas as pd
import seolpyo_mplchart as mc

class Chart(mc.SliderChart):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.collection_candle.set_linewidth(1.5)
        self.get_candle_segment = self.get_bar_segment
        return

C = Chart()

data = {stock price data}
df = pd.DataFrame(data)

C.set_data(df)

mc.show()

Chart.get_info_kwargs(is_price, **kwargs)

You can modify or add the data displayed in the text box using the get_info_kwargs method. The **kwargs parameter receives predefined keyword arguments.

If you'd like, I can help format this as a docstring or comment for your code. For example: Allows customization of the data shown in the text box. Predefined keyword arguments are passed via **kwargs.

import pandas as pd
import seolpyo_mplchart as mc


class Chart(mc.SliderChart):
    format_candleinfo = mc.format_candleinfo_ko + '\nCustom info: {ci}'

    def get_info_kwargs(self, is_price, **kwargs):
        if is_price:
            kwargs['ci'] = 'this is custom add info kwargs'
            kwargs['close'] = 'Cusotom close value'
        return kwargs

C = Chart()
data = {stock price data}
df = pd.DataFrame(data)

C.set_data(df)

mc.show()

Chart.on_draw(e)

Method called when the draw event is triggered. Only invoked in CursorChart and SliderChart.

Chart.on_resize(e)

Method called when the resize event is triggered. Only invoked in SliderChart.

Chart.on_pick(e)

Method called when the pick event is triggered.

Chart.on_move(e)

Method called when a mouse movement event occurs. Only invoked in CursorChart and SliderChart.

Chart.on_click(e)

Method called when a mouse click event occurs.

Only invoked in SliderChart.

Chart.on_release(e)

Method called when a mouse release event occurs.

Only invoked in SliderChart.

CONFIG

A configuration that includes setting class objects such as FIGURE, AX, FORMAT, UNIT, CURSOR, CANDLE, VOLUME, MA, and SLIDER.

DEFAULTCONFIG

CONFIG applied to OnlyChart and CursorChart.

DEFAULTCONFIG_EN

CONFIG applied to OnlyChart and CursorChart, with the price unit set to $, the volume unit set to Vol, and the formatting based on English conventions.

SLIDERCONFIG

CONFIG applied to SliderChart.

SLIDERCONFIG_EN

CONFIG applied to SliderChart, with the price unit set to $, the volume unit set to Vol, and the formatting based on English conventions.

    # seolpyo_mplchart/_config/slider/config.py

    from .. import config
    from .figure import FIGURE, SliderFigureData
    from .nav import NAVIGATOR


    class SliderData:
        def __init__(self):
            self.NAVIGATOR = NAVIGATOR

    SLIDER = SliderData()

    class SliderConfigData(config.ConfigData):
        FIGURE: SliderFigureData
        SLIDER: SliderData


    SLIDERCONFIG: SliderConfigData = config.DEFAULTCONFIG
    SLIDERCONFIG.FIGURE = FIGURE
    SLIDERCONFIG.SLIDER = SLIDER

    SLIDERCONFIG_EN: SliderConfigData = config.DEFAULTCONFIG_EN
    SLIDERCONFIG_EN.FIGURE = FIGURE
    SLIDERCONFIG_EN.SLIDER = SLIDER

    # seolpyo_mplchart/_config/config.py

    from . import figure, ax, candle, volume, ma, unit, cursor, format


    class ConfigData:
        def __init__(self):
            self.FIGURE = figure.FIGURE
            self.UNIT = unit.UNIT
            self.AX = ax.AX
            self.CANDLE = candle.CANDLE
            self.VOLUME = volume.VOLUME
            self.MA = ma.MA
            self.CURSOR = cursor.CURSOR
            self.FORMAT = format.FORMAT

    DEFAULTCONFIG = ConfigData()

    DEFAULTCONFIG_EN = ConfigData()
    DEFAULTCONFIG_EN.UNIT = unit.UNIT_EN
    DEFAULTCONFIG_EN.MA = ma.MA_EN
    DEFAULTCONFIG_EN.FORMAT = format.FORMAT_EN

Others

---

Required data

---

A chart object must be provided with a DataFrame that contains the following columns: [timestamp, open, high, low, close, volume]

How to Change Language and Text Format

The default language is Korean. If needed, you can change the units for price and volume, and customize the text format to match your preferred style.

How to Change Display Units

The price and volume units, as well as the number of decimal places for price and volume, are managed in CONFIG.UNIT.

from .utils import convert_unit, convert_unit_en
# seolpyo_mplchart._config.unit.py

class UnitData:
    def __init__(self):
        self.price = '원'
        self.volume = '주'
        self.digit = 0
        self.digit_volume = 0
        self.func = convert_unit

UNIT = UnitData()

UNIT_EN = UnitData()
UNIT_EN.price = ' $'
UNIT_EN.volume = ' Vol'
UNIT_EN.digit = 2
UNIT_EN.func = convert_unit_en

How to Change the Information Text Format

You can customize the name of the price moving average line and the text displayed in the information box. Text formatting is managed through CONFIG.FORMAT. Additional kwargs for customizing the text can be passed via the chart’s get_info_kwargs method.

# seolpyo_mplchart/_config/format.py

format_candleinfo_ko = """\
{dt}

종가:　 {close}
등락률: {rate}
대비:　 {compare}
시가:　 {open}({rate_open})
고가:　 {high}({rate_high})
저가:　 {low}({rate_low})
거래량: {volume}({rate_volume})\
"""
format_volumeinfo_ko = """\
{dt}

거래량:　　　 {volume}
거래량증가율: {rate_volume}
대비:　　　　 {compare}\
"""

class FormatData:
    def __init__(self):
        self.candle = format_candleinfo_ko
        self.volume = format_volumeinfo_ko

FORMAT = FormatData()

format_candleinfo_en = """\
{dt}

close:      {close}
rate:        {rate}
compare: {compare}
open:      {open}({rate_open})
high:       {high}({rate_high})
low:        {low}({rate_low})
volume:  {volume}({rate_volume})\
"""
format_volumeinfo_en = """\
{dt}

volume:      {volume}
volume rate: {rate_volume}
compare:     {compare}\
"""

FORMAT_EN = FormatData()
FORMAT_EN.candle = format_candleinfo_en
FORMAT_EN.volume = format_volumeinfo_en

How to Change Chart Style

Since I prefer a white background, the default chart style is set to light mode. If you want to change the chart style, simply modify the color values defined in CONFIG. A function named set_theme has been created to switch between light and dark themes. You can either use this function directly, or check which values it modifies and adjust them to suit your preferences.

import json

import seolpyo_mplchart as mc
import pandas as pd


class Chart(mc.SliderChart):
    def __init__(self, config, *args, **kwargs):
        config = mc.set_theme(config, theme='dark')


file = {stock price data path}
with open(file, 'r', encoding='utf-8') as txt:
    data = json.load(txt)
df = pd.DataFrame(data)

c = Chart()
c.set_data(df)

mc.show()

How to Change Chart Aspect Ratio

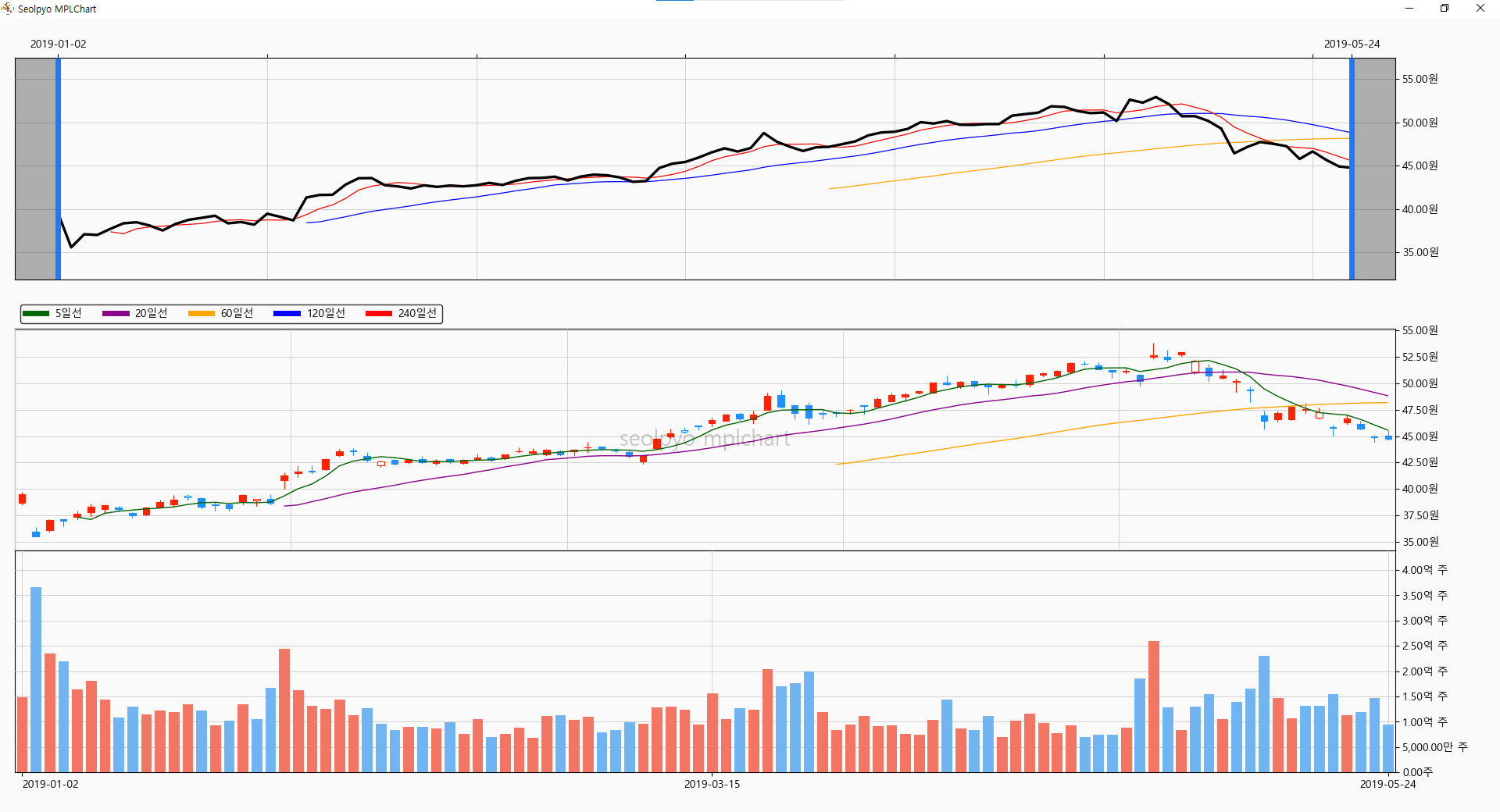

You can adjust the proportions of each chart area using the values of ratio_ax_slider, ratio_ax_legend, ratio_ax_price, ratio_ax_volume, and ratio_ax_none. Note: ratio_ax_none is only used when the value of slider_top is set to False.

# seolpyo_mplchart/_config/slider/figure.py


class RatioData:
    def __init__(self):
        self.price = 18
        self.volume = 5
        self.slider = 3
        self.none = 2

RATIO = RatioData()

class SliderFigureData(figure.FigureData):
    def __init__(self):
        super().__init__()
        self.RATIO: RatioData = RATIO

FIGURE = SliderFigureData()
